Have you ever been frustrated by the messy tangle of power cords for your devices? Ever wished a single Ethernet cable could handle both data transfer and power delivery? That's the magic of PoE (Power over Ethernet)! It frees devices like network cameras and wireless access points from the constraints of power outlets, making installation far more flexible and convenient.
Behind the scenes of PoE, countless intelligent chips are quietly working to ensure power is safely and efficiently transmitted over the network cable. Today, we're going to take a deep dive into a star product from Analog Devices (formerly Linear Technology): the LTC4263CS.
This article will guide you through the powerful features of the LTC4263CS, explain how it simplifies PoE system design, and showcase its wide-ranging applications in modern smart devices. We'll unveil this "unsung hero" that plays a pivotal role in miniaturized PoE power delivery.
LTC4263CS: The "Smart Power Manager" of the PoE World

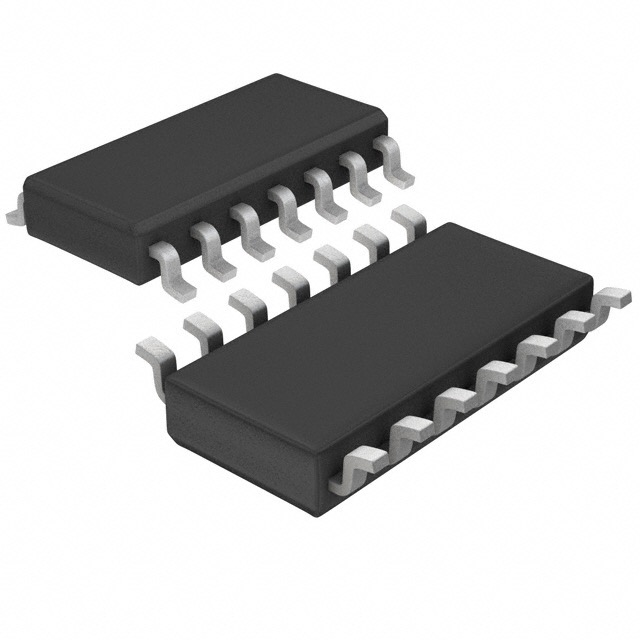

So, what exactly is the LTC4263CS? Simply put, it's a single-channel IEEE 802.3af-compliant PSE (Power Sourcing Equipment) controller that conveniently comes with an integrated internal switch.
In a PoE system, the PSE acts as the "power manager." Its primary responsibilities include detecting whether network devices support PoE, classifying their power requirements, then safely and efficiently delivering power, and finally, cutting off power when a device disconnects or experiences a fault.
The unique aspect of the LTC4263CS lies in its high degree of autonomy. Many PoE controllers require an external microcontroller to manage these complex detection, classification, and power delivery processes. However, the LTC4263CS can independently handle the entire PoE power delivery sequence. This means you can eliminate the need for an extra microcontroller and simplify software development, thereby significantly streamlining system design. This is undoubtedly a huge advantage, especially for PoE applications aiming for miniaturization and cost-effectiveness.

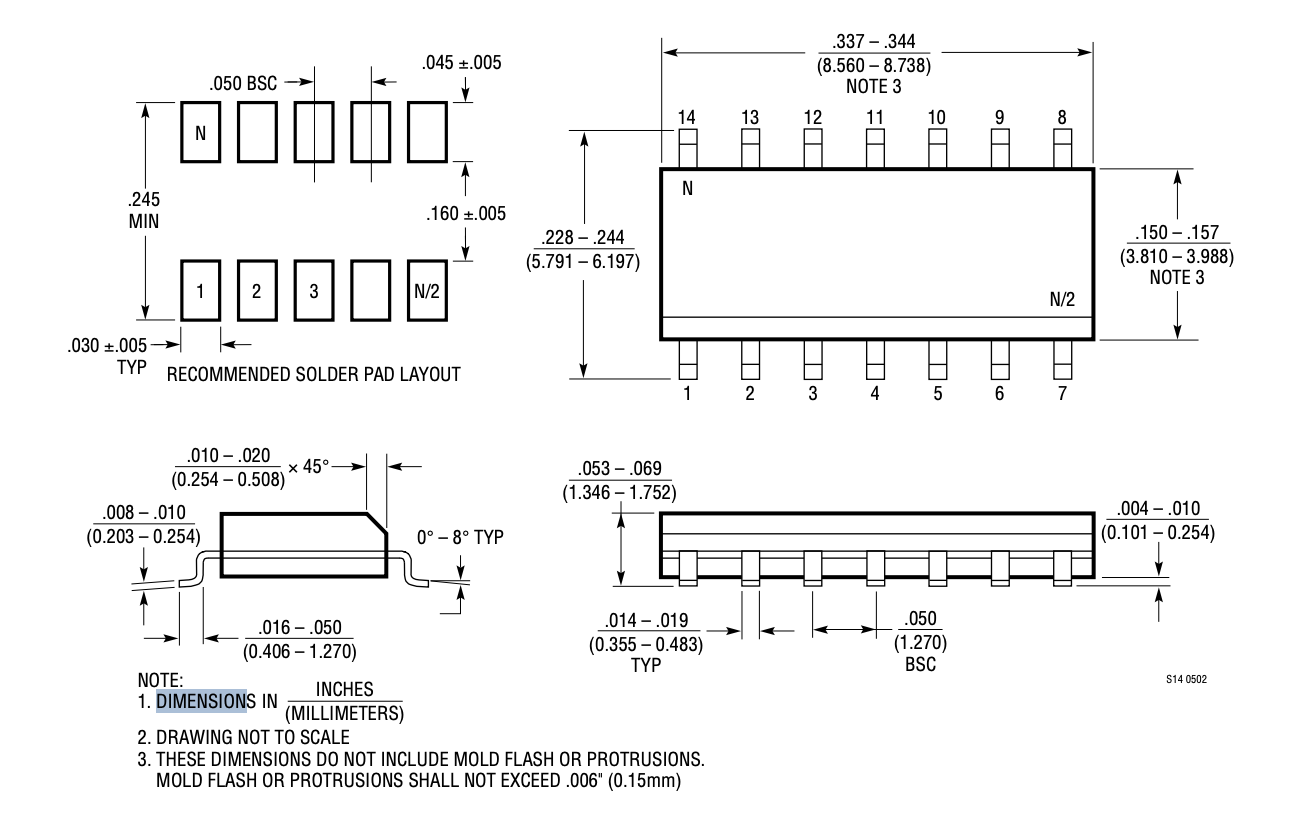

LTC4263CS Dimensions
Here's a breakdown of the LTC4263CS's dimensions, including the package type and specific measurements:

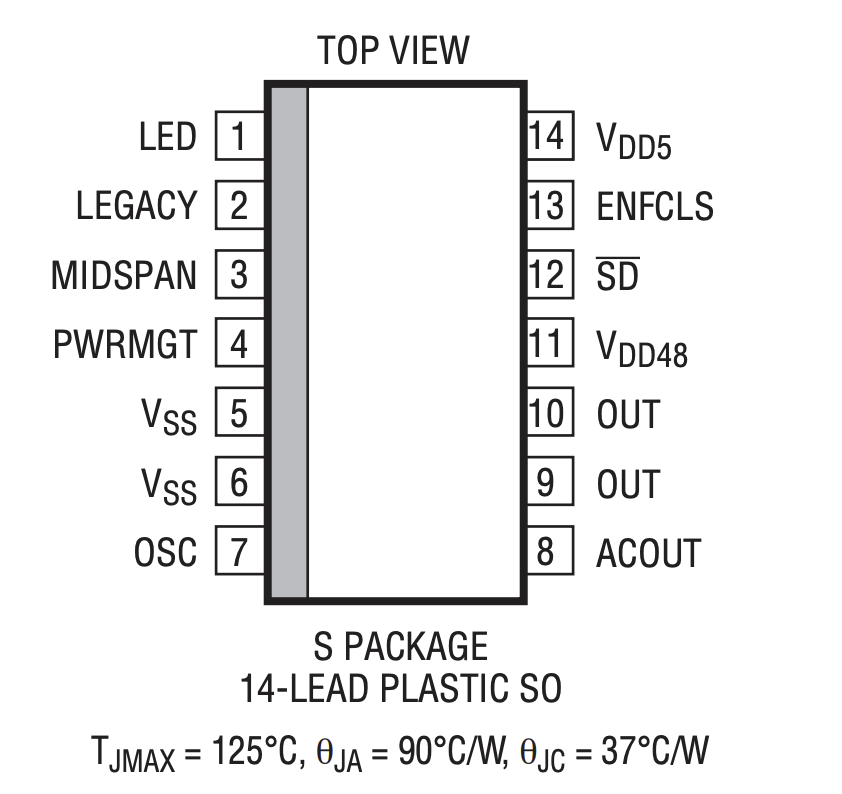

LTC4263CS Pinout Quick Reference (14-SOIC Package)
| Pin No. | Pin Name | Type | Function Description |
|---|
| 1 | LED | Output | LED driver output, for connecting an indicator LED to show port status. |
| 2 | LEGACY | Input | Legacy PoE device detection input, compatible with non-802.3af standard PDs. |
| 3 | MIDSPAN | Input | Midspan/Endspan mode selection input, configures the chip to operate as an injector or switch. |
| 4 | PWRMGT | Input/Output | Power management input/output, for external power control or status indication. |
| 5 | VSS | Ground | Ground pin. |
| 6 | VSS | Ground | Ground pin. |
| 7 | OSC | Input | Oscillator input, used to set the chip's internal oscillator frequency. |
| 8 | ACOUT | Output | Analog output, may provide an analog voltage related to port status. |
| 9 | OUT | Output | One of the PoE power output pins, connected to the Ethernet cable. |
| 10 | OUT | Output | The second PoE power output pin, connected to the Ethernet cable. |
| 11 | VDD48 | Power Input | 48V DC power input, the chip's primary power supply. |
| 12 | SD | Input | Shutdown input (active low), used to control the chip's on/off state. |
| 13 | ENFCLS | Input | Enable/Fault Clear input, used to enable the chip or clear fault conditions. |
| 14 | VDD5 | Power Output | 5V power output, can be used for internal logic or other low-power circuits. |
LTC4263CS Specifications
| Parameter Category | Parameter Name | Typical Value/Range | Description |
|---|
| PoE Standard | Compatible Standard | IEEE 802.3af | Complies with Power over Ethernet standard. |
| Function Type | Type | PSE Controller | Power Sourcing Equipment controller. |
| | Number of Channels | 1 | Single-channel power delivery. |
| | Internal Switch | Yes (Integrated Power MOSFET) | Chip integrates power switch internally, simplifying external circuitry. |
| Power Delivery Characteristics | Max Power Delivery | 15.4 W | Maximum single-port power delivery according to 802.3af standard. |
| | Supply Voltage Range | 33V ~ 66V | Typical PoE system supply voltage range. |
| | Inrush Current Control | Precise Control (Internal Sense Resistor) | Smooth startup, protects equipment. |
| | Short-Circuit Current Limit | ~615 mA (Typical) | Protects PSE and PD from short-circuit damage. |
| | Overload Current Threshold | ~570 mA (Typical) | Current limit threshold for different PD classifications. |
| Detection & Classification | PD Detection | 802.3af Protocol Compliant | Automatically identifies connected PoE devices. |
| | PD Classification | Supports Class 0, 1, 2, 3, 4 | Classifies power requirements based on device power class for optimized delivery. |
| Disconnect Detection | Disconnect Detection Method | AC and DC Disconnect Detection | Ensures safe power cutoff when a device is removed. |
| Autonomous Operation | Microcontroller Requirement | None | Chip autonomously manages PoE protocol; no external MCU intervention needed. |
| Protection Features | Fault Protection | Short-Circuit Protection, Thermal Shutdown Protection | Enhances system reliability and safety. |
| Package & Environment | Package | 14-SOIC | Common surface-mount package, suitable for miniaturized designs. |
| | Operating Temperature Range (LTC4263CS) | 0°C ~ 70°C | Suitable for commercial-grade applications. |
| Other Features | LED Driver Indication | Supported | Convenient port status indication. |
| | Quiescent Supply Current | 2 mA (Typical) | Current consumption required for the chip's own operation. |
| | MOSFET On-Resistance | 3 Ohms (Maximum) | On-resistance of the internally integrated MOSFET, affects efficiency and heat. |
Core Features & Technical Highlights
The LTC4263CS stands out in PoE thanks to its powerful core features and innovative technical highlights. It's not just a simple switch; it's a smart chip packed with multiple "superpowers."
IEEE 802.3af Standard Compliance: The Foundation of Interoperability
This might sound technical, but it's key. The LTC4263CS fully complies with the IEEE 802.3af standard, which defines all PoE power delivery rules. This ensures seamless interaction: devices powered by the LTC4263CS (PSEs) can recognize and power any compliant powered device (PD). This guarantees compatibility, simplifying system integration and expansion.
Integrated Power MOSFET: Streamlined Design, Enhanced Efficiency
Unlike traditional PoE designs requiring external power MOSFETs, the LTC4263CS cleverly integrates this component internally. This offers several benefits:
Fewer External Parts: Reduces Bill of Materials (BOM) cost.
Smaller PCB Size: Ideal for compact PoE applications like mini-routers and IP cameras.
Higher Efficiency: Optimized internal design minimizes power loss.
Precise Inrush Current Control: Smooth Start, Device Protection
When a device connects, it can draw a sudden "inrush current" that might damage equipment. The LTC4263CS precisely controls this using an internal sense resistor. It gradually increases power, suppressing current surges for a smooth PoE startup, extending the lifespan of both PSE and PD devices.
PD (Powered Device) Detection & Classification: Smart, On-Demand Power
This highlights the LTC4263CS's intelligence. When an Ethernet cable is plugged in, the chip performs a precise "handshake":
Detection: It sends a low-power signal to verify if the connected device is a PoE-compatible PD. If not, no power is supplied, preventing accidental damage to non-PoE devices.
Classification: If a PD is detected, the LTC4263CS communicates further to classify the PD's power needs (e.g., Class 0-3) according to 802.3af. It then delivers power precisely as needed, saving energy and avoiding overload risks.
AC and DC Disconnect Detection: Safe, Reliable Power Management
To ensure PoE system safety, the LTC4263CS has accurate disconnect detection:
AC Disconnect Detection: When a PD (like an IP camera) physically disconnects, the LTC4263CS quickly detects the current change and stops power.
DC Disconnect Detection: Even when AC detection isn't applicable, the LTC4263CS can sense subtle voltage or current changes to confirm PD disconnection, safely halting power and preventing potential hazards.
Built-in Fault Protection: Indestructible "Safety Guard"
For demanding industrial and commercial environments, the LTC4263CS includes multiple protective mechanisms:
Short-Circuit Protection: Immediately cuts power if a short circuit is detected, protecting both PSE and PD equipment.
Thermal Shutdown Protection: Automatically shuts down if the chip's internal temperature gets too high, preventing damage and ensuring long-term stability.
Single 48V Supply Operation: Simplified Power Design
The LTC4263CS can directly use standard 48V DC power, common in PoE systems. This significantly simplifies power management unit design, eliminating complex buck/boost circuits and further reducing system complexity and cost.
No Microcontroller Operation Required: A Revolutionary Advantage (Worth Repeating)
Yes, this is worth reiterating. The LTC4263CS's "autonomy" is a major benefit. Its internal logic handles all PoE protocol and power management tasks without needing an external microcontroller. This is excellent news for PoE applications seeking extreme cost-efficiency, rapid development, and minimal system resources.
LED Driver Indication: Intuitive Status Feedback
The LTC4263CS also provides convenient LED driver pins. These can directly connect to LEDs to visually indicate the port's power status (e.g., PD detected, power supplied). This greatly aids system installation, troubleshooting, and daily maintenance.
Application Scenarios for the LTC4263CS
Thanks to its exceptional performance and highly integrated features, the LTC4263CS plays a crucial role in numerous fields. It particularly excels in applications demanding simple wiring, flexible deployment, and high reliability. Essentially, wherever there's an Ethernet cable and a need for power, the LTC4263CS finds its place.
IP Cameras: The Ideal Choice for Smart Security Monitoring Imagine installing a security camera where you only need to run one Ethernet cable to handle both data transmission and power delivery. The LTC4263CS is the ideal core for such applications, greatly simplifying the deployment process for IP cameras. This is especially beneficial for outdoor or high-elevation environments where running power lines is challenging, making smart security monitoring systems neater and more efficient.
VoIP Phones: Optimizing Office Phone System Cabling In modern offices, VoIP (Voice over IP) phones have replaced traditional landlines. With the LTC4263CS, each VoIP phone no longer requires a separate power adapter. A single Ethernet cable connection not only optimizes desktop cabling, making offices look tidier, but also facilitates easier device relocation and deployment.
Wireless Access Points (WAPs): Flexible WLAN Deployment The coverage and signal strength of wireless networks often depend on the WAP's installation location. The inclusion of the LTC4263CS allows WAPs to be installed on ceilings, walls, or any other location reachable by an Ethernet cable, without needing to consider the proximity of a power outlet. This opens up endless possibilities for more flexible and optimized WLAN deployments.
Single-Port or Multi-Port Power Injectors: Upgrading Existing Networks Does your switch lack PoE support, but you need to power IP devices? No problem! The LTC4263CS can serve as the core of a standalone power injector. Whether for single-port or multi-port designs, it can help you "upgrade" a regular non-PoE switch to one with PoE capabilities, effectively leveraging existing network infrastructure.
Low-Port Count PSE Systems: Small Networks or Specific Device Powering For home networks, small offices, or scenarios where only a few PoE devices need power, the LTC4263CS is an ideal choice for building low-port count PSE systems. Its simple structure and cost-effectiveness allow it to provide stable and reliable power for specific PoE devices.
Industrial Applications: Providing Stable Power in Harsh Environments Industrial environments are often complex and harsh, demanding extremely high reliability from equipment. The LTC4263CS's robust protection mechanisms (like short-circuit protection and thermal shutdown) and autonomous operation make it an ideal choice for powering industrial Ethernet devices. It ensures a stable and reliable power supply even under rigorous conditions, for instance, in automation control and industrial sensing applications.
Other Smart Internet of Things (IoT) Devices: The Perfect Blend of Connectivity and Power With the rapid advancement of the Internet of Things, more and more smart devices require both network connectivity and power, such as smart lighting, access control systems, and environmental sensors. The LTC4263CS can provide an efficient and simplified solution for any IoT device that needs to be connected and powered via Ethernet, thereby accelerating the proliferation and intelligence of IoT devices.
Reference
LTC4263CS Datasheet
