What are the key features of the AS5215F-HMFP-PHI?

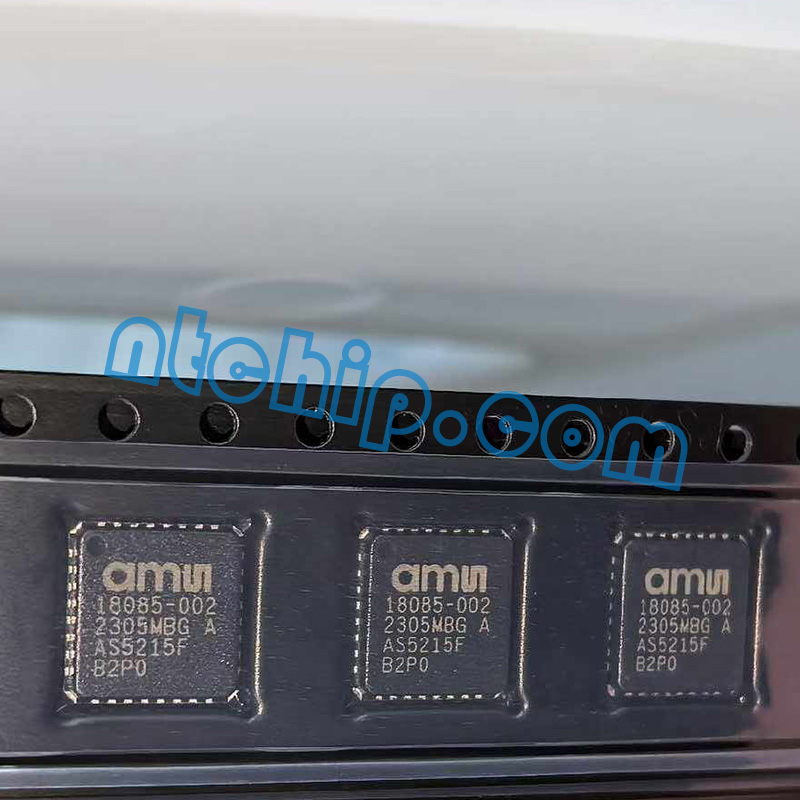

The AS5215F-HMFP-PHI is a contactless magnetic angular position sensor that provides high-precision analog outputs with buffered sine and cosine signals. It supports an SSI digital interface, offers programmable differential or single-ended outputs, and operates over a wide magnetic field range (20 – 80 mT) and temperature span (-40 °C to +150 °C). It is fully automotive qualified to AEC-Q100 Grade 0 and housed in a compact 32-pin QFN package.
What is this sensor used for?
This device is typically used to measure rotational position in automotive and industrial systems, such as steering angle detection, motor position feedback, and actuator control. Its contactless design enhances durability and reliability in harsh environments where wear and vibration are concerns.
Are there alternative parts?
Yes. Comparable magnetic angle sensors include the AS5048A or AS5147P from ams (depending on required interface and resolution). Other alternatives from different vendors might include magnetic encoders from Infineon (e.g., TLE4998) or Melexis (e.g., MLX90316). When choosing alternatives, ensure matching interface type (SSI/SPI/I²C), magnetic field requirements, and package specifications to suit your application.
