Molex 39301040


Manufacturer Part Number : 39301040
Manufacturer : Molex
Description : CONN HEADER R/A 4POS 4.2MM
Package : 4POS
Datasheet : 39301040.PDF 39301040 PDF
EDA / CAD Models : 39301040 by SnapEDA
Stock Condition :In Stock 200000, New Original
Delivery:
Payment:
1606 1679 7627160 /datasheets/Connectors-Interconnects/39301040--1.pdf molex/39301040

Request for Quotation


Please fill the form and we'll get back to you within 24 hours.
Quick RFQ
Pricing

*All prices are in USD

Qty Unit Price Ext Price
1 $0.2896 $0.2896
50 $0.2606 $13.0300
100 $0.2346 $23.4600
500 $0.2111 $105.5500
1000 $0.1900 $190.0000

In Stock 200000 PCS

Subtotal : $0.000

Add to RFQ List Buy Now

*Products eligible for online ordering ship within 1-2 business days,please contact us for exact shipping times.

Molex 39301040

In Stock: 200000   Qty:

Unit Price: $

Ext Price: $

Add to Cart Buy Now RFQ Now Add to RFQ list

The 39301040 from Molex is a reliable through-hole, right-angle connector header designed with 4 positions and a 4.20mm pitch, making it suitable for secure board-to-wire connections. Its robust construction ensures stable mechanical support and consistent electrical performance, while the right-angle design helps optimize PCB layout in space-constrained applications. This connector is built to meet the demands of various electronic systems requiring dependable connectivity.Commonly used in consumer electronics, industrial equipment, and power applications, the 39301040 provides a practical solution for signal and power transmission.

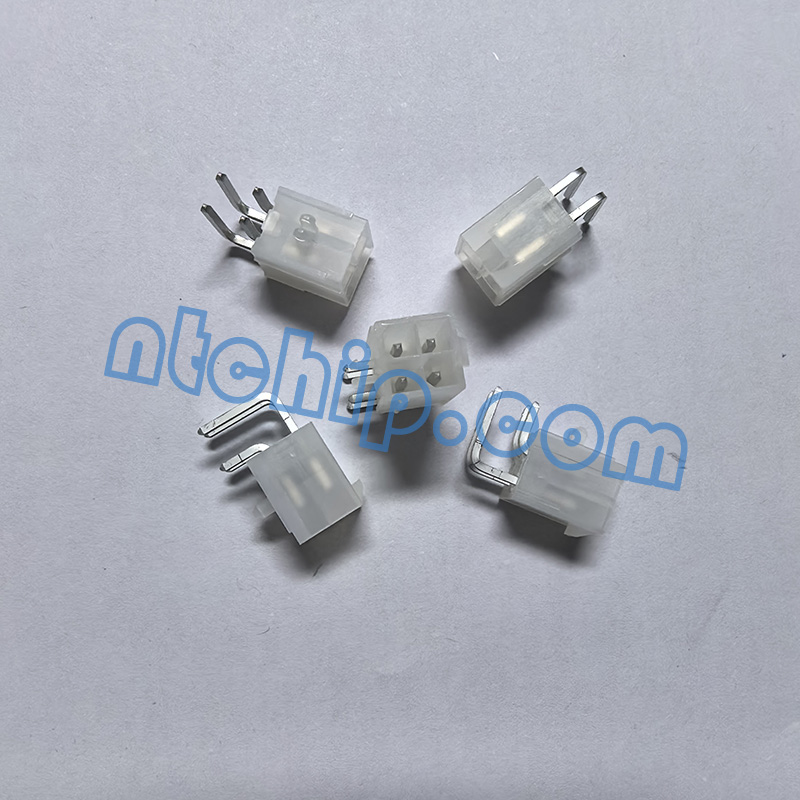

Molex 39301040 connector part

As a professional Molex distributor, Nantian Electronics maintains stock of this part and offers complete technical resources, including datasheets and pin diagrams. Customers are welcome to contact us for inquiries, pricing, and orders, with competitive quotations and reliable service provided.

TypeDescription
CategoryConnectors, Interconnects Rectangular - Connectors Headers, Male Pins
MfrMolex
SeriesMini-Fit Jr 5569
PackagingBulk
Part StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.165" (4.20mm)
Number of Positions4
Number of Rows2
Row Spacing - Mating0.165" (4.20mm)
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypeLocking Ramp
Contact Length - Mating-
Contact Length - Post0.142" (3.60mm)
Overall Contact Length-
Insulation Height0.378" (9.60mm)
Contact ShapeSquare
Contact Finish - MatingTin
Contact Finish Thickness - Mating100.0µin (2.54µm)
Contact Finish - PostTin
Contact MaterialBrass
Insulation MaterialPolyamide (PA66), Nylon 6/6
FeaturesBoard Lock
Operating Temperature-
Ingress Protection-
Material Flammability RatingUL94 V-2
Insulation ColorNatural
Current Rating (Amps)-
Voltage Rating-
Mated Stacking Heights-
Contact Finish Thickness - Post100.0µin (2.54µm)
ApplicationsGeneral Purpose, Industrial, Telecommunications
Base Product Number003930


What are its key features?

4-position right-angle header, 4.20mm pitch, through-hole mounting, stable connection, and durable structure for reliable signal and power transmission.

What is it used for?

Used in PCB board-to-wire connections in consumer electronics, industrial equipment, and power supply systems.

Are there alternative parts?

Yes, alternatives include similar 4.20mm pitch headers from Molex (same series) and compatible connectors from JST, TE Connectivity, and Amphenol.
