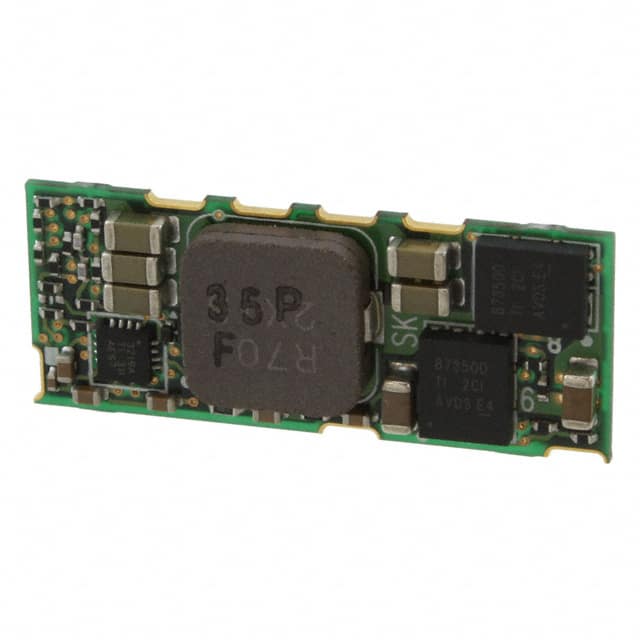

Image shown is a representation only. Exact specifications should be obtain- ed from the product data sheet.

Sanken BR206

Manufacturer Part Number : BR206
Manufacturer : Sanken
Description : IC MODULE DC/DC CONV 20A
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Datasheet : BR206.PDF BR206 PDF
EDA / CAD Models : BR206 by SnapEDA
Quantity:
398 402 6848609 http://www.semicon.sanken-ele.co.jp/sk_content/br206_ds_en.pdf Sanken/BR206 6848609
Series:-
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):7V
Voltage - Output 1:0.75 ~ 3.63 V
Voltage - Output 2:-
Voltage - Output 3:-
Current - Output (Max):20A
Power (Watts) - Manufacture Series:73W
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:Remote On/Off, OCP
Mounting Type:Surface Mount
Package / Case:10-SMD Module
Size / Dimension:1.30" L x 0.53" W x 0.17" H (33.0mm x 13.5mm x 4.2mm)
Operating Temperature:-40~C ~ 85~C
Efficiency:94.60%

Request for Quotation

Technical Parameters of BR206

Series:-
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):7V
Voltage - Output 1:0.75 ~ 3.63 V
Voltage - Output 2:-
Voltage - Output 3:-
Current - Output (Max):20A
Power (Watts) - Manufacture Series:73W
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:Remote On/Off, OCP
Mounting Type:Surface Mount
Package / Case:10-SMD Module
Size / Dimension:1.30" L x 0.53" W x 0.17" H (33.0mm x 13.5mm x 4.2mm)
Operating Temperature:-40~C ~ 85~C
Efficiency:94.60%

Product Details

We can supply Sanken part# BR206, use the request quote form to request BR206 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BR206. The price and lead time for BR206 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# BR206. We look forward to doing business with you.
