Home / Products  /  Circuit Protection  /  TVS - Diodes  /  ESDA8V2-1MX2

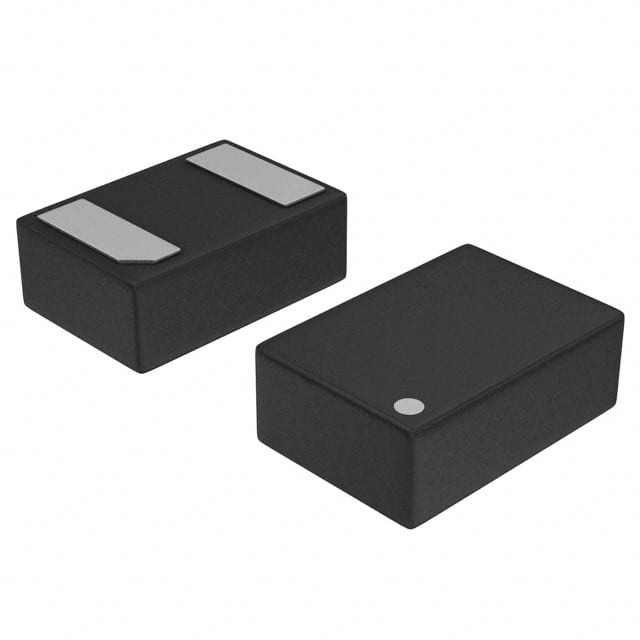

Image shown is a representation only. Exact specifications should be obtain- ed from the product data sheet.

STMicroelectronics ESDA8V2-1MX2

Manufacturer Part Number : ESDA8V2-1MX2
Manufacturer : STMicroelectronics
Description : TVS DIODE 5VWM 18.5VC 2QFN
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Datasheet : ESDA8V2-1MX2.PDF ESDA8V2-1MX2 PDF
EDA / CAD Models : ESDA8V2-1MX2 by SnapEDA
Quantity:
404 420 6953845 http://www.st.com/content/ccc/resource/technical/document/datasheet/0d/78/7c/01/10/fc/4e/38/CD00209004.pdf/files/CD00209004.pdf/jcr:content/translations/en.CD00209004.pdf STMicroelectronics/ESDA8V2-1MX2 6953845
Series:ESDA, TRANSIL?
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):5V
Voltage - Breakdown (Min):8.2V
Voltage - Clamping (Max) @ Ipp:18.5V
Current - Peak Pulse (10/1000米s):27A (8/20米s)
Power - Peak Pulse:500W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:350pF @ 1MHz
Operating Temperature:-40~C ~ 125~C (TJ)
Mounting Type:Surface Mount
Package / Case:2-UFDFN
Supplier Device Package:2-米QFN (1.45x1.0)

Request for Quotation

Technical Parameters of ESDA8V2-1MX2

Series:ESDA, TRANSIL?
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):5V
Voltage - Breakdown (Min):8.2V
Voltage - Clamping (Max) @ Ipp:18.5V
Current - Peak Pulse (10/1000米s):27A (8/20米s)
Power - Peak Pulse:500W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:350pF @ 1MHz
Operating Temperature:-40~C ~ 125~C (TJ)
Mounting Type:Surface Mount
Package / Case:2-UFDFN
Supplier Device Package:2-米QFN (1.45x1.0)

Product Details

We can supply STMicroelectronics part# ESDA8V2-1MX2, use the request quote form to request ESDA8V2-1MX2 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ESDA8V2-1MX2. The price and lead time for ESDA8V2-1MX2 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# ESDA8V2-1MX2. We look forward to doing business with you.
