The LM8272MM/NOPB by Texas Instruments is a high-performance operational amplifier that excels in a variety of applications, from driving TFT-LCD flat panels to functioning as a buffer for AD converters. This op-amp features a generous bandwidth of 15 MHz and a fast slew rate of 15 V/μs, ensuring quick response times and efficient signal processing across a wide supply voltage range of 2.5 V to 24 V. Its low supply current of just 0.95 mA per channel makes it an energy-efficient choice for continuous operation in consumer electronics and industrial systems.

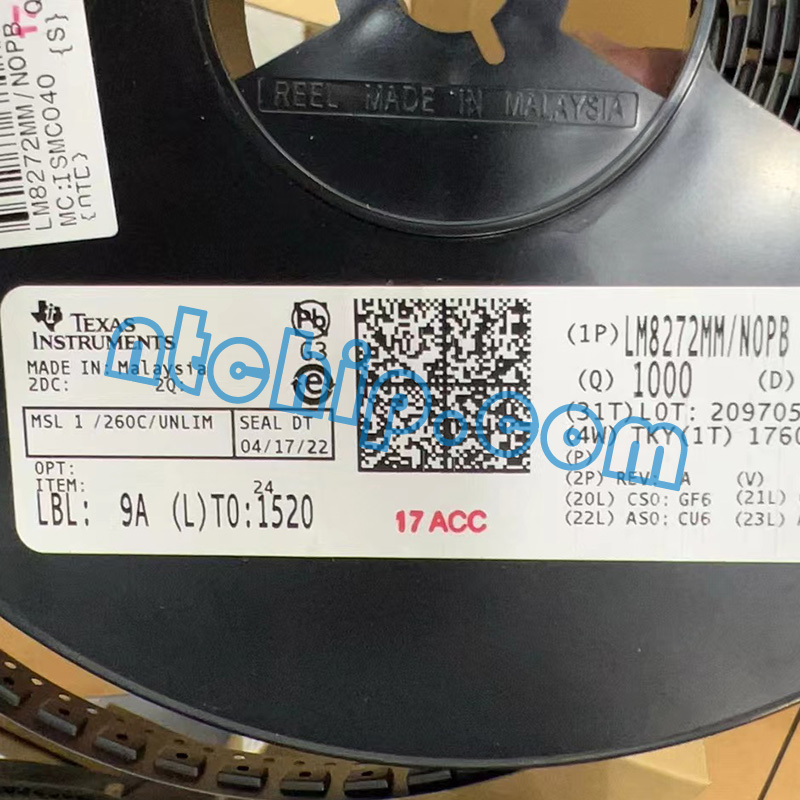

Texas Instruments LM8272MM/NOPB Original Reel Label

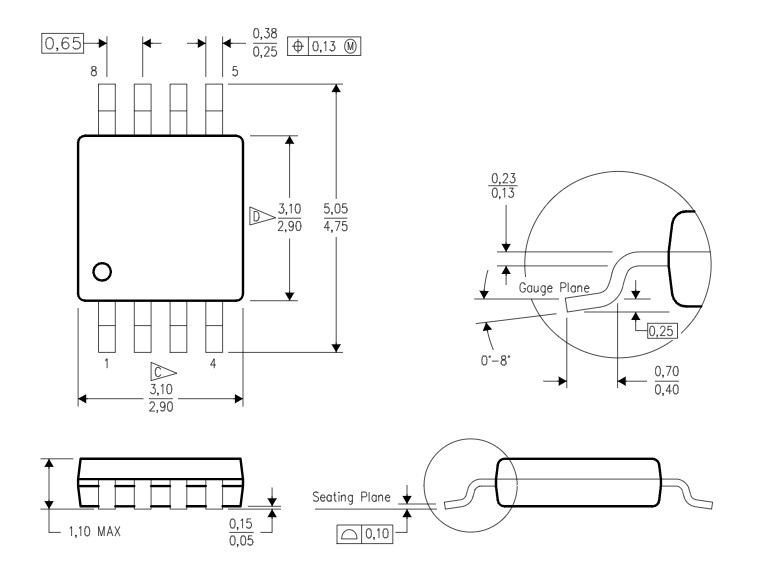

Texas Instruments LM8272MM/NOPB Package Diagrams:
Designed to handle demanding environments, the LM8272MM/NOPB can drive unlimited capacitive loads and offers robust output characteristics, including an output short circuit current of +130 mA and an output current of ±65 mA when operating within 1 V of the power rails. It also features an extended input common-mode voltage range that reaches 0.3 V beyond the supply rails, enhancing its versatility in various circuit configurations. With its low input voltage noise of 15 nV/√Hz and input current noise of 1.4 pA/√Hz, this op-amp is ideal for high-fidelity audio applications, such as headphone amplifiers, and precise sensing applications, both high side and low side.

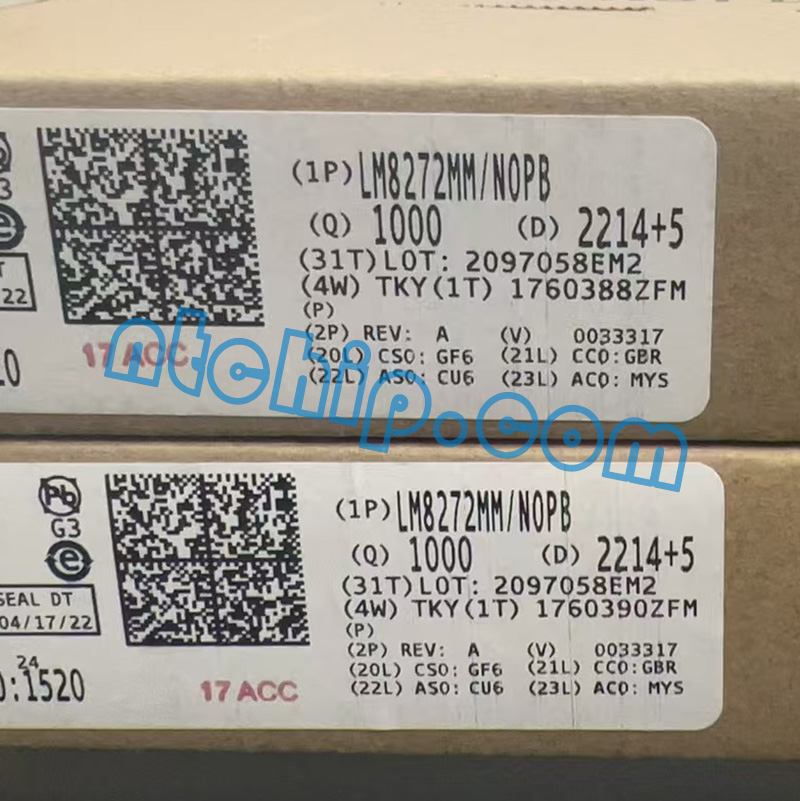

Texas Instruments LM8272MM/NOPB Package Genuine Label
Nantian Electronics, a trusted distributor of Texas Instruments, offers ample stock of LM8272MM/NOPB along with detailed datasheets and pin diagram instructions to support its integration into diverse electronic projects.
