What is a 1K Ohm Resistor? 1K Ohm Resistor Color Code

What is 1K Ohm Resistor?

A 1k resistor is an essential electronic component with a resistance value of 1,000 ohms. The "k" represents "kilo," which equals 1,000. Resisters are passive devices that regulate current flow in circuits by providing resistance. Widely used in electronics, the 1k resistor controls current, sets voltage levels, and biases transistors, among other functions. Identified by a color code of four bands, it indicates its resistance value and tolerance. The 1k resistor's role in circuit design is crucial, ensuring proper functioning and optimal performance of electronic devices. In this article, we will describe how to read 4 band and 5 band 1K resistors.

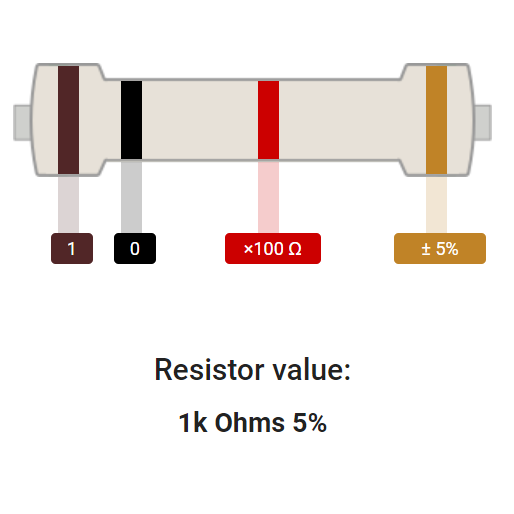

How to read 1K Resistor Color Code 4 band?

1k Resistor Color Code

Color	First Band	Secon Band	Multiplier Band	Tolerance Band
Brown	1	1	10	+/-1%
Black	0	0	1	none
Red	2	2	1 * 102	none
Gold	none	none	0.1	+/-5%

The color code for a 1k ohm resistor is as follows:

1. First band: Brown (Represents the first digit 1)

2. Second band: Black (Represents the second digit 0)

3. Third band: Red (Represents the multiplier 100, which corresponds to 10^2)

4. Fourth band: Gold (Represents the tolerance of +/- 5%)

Therefore, the color bands "Brown, Black, Red, Gold" on a resistor indicate its value as 1k ohms with a tolerance of +/- 5%.

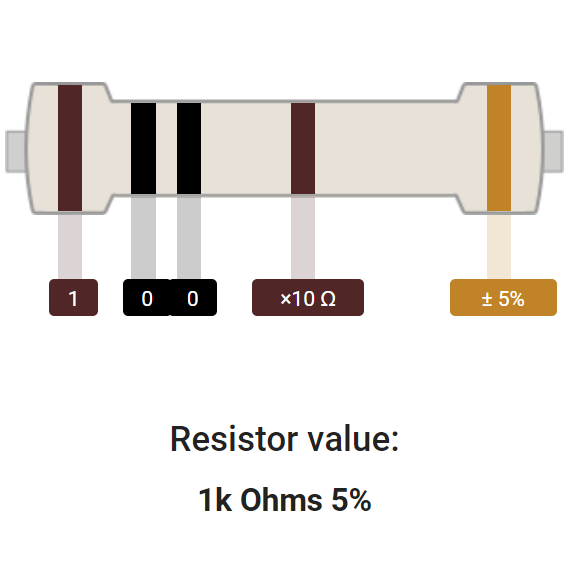

1K Ohm Resistor Color Code 5 band

1K Ohm 5 Band Resistor Color Code | 1k Resistor Color Code

Color	First Band	Secon Band	Third Band	Multiplier Band	Tolerance Band
Black	0	0	0	1	none
Red	2	2	2	100	+/-2%
Gold	none	none	none	0.1	+/-5%



A 1k ohm resistor with a 5-band color code consists of five color bands on its body, each representing a specific value. The color code for a 1k ohm resistor with a 5-band system is as follows:

1. First Band (First Significant Figure): Brown (represents the number 1)

2. Second Band (Second Significant Figure): Black (represents the number 0)

3. Third Band (Third Significant Figure): Black (represents the number 0)

4. Fourth Band (Multiplier): Brown (represents a multiplier of 10)

5. Fifth Band (Tolerance): Gold (represents a tolerance of +/- 5%)

To calculate the actual resistance value, we combine the first three significant figures (1, 0, and 0) and multiply them by the multiplier (10). Therefore, the resistance value is 1000 ohms or 1k ohms with a tolerance of +/- 5%.

Comparing 4 band 1K resistors and 5 band 1K resistors

When it comes to comparing 4-band and 5-band 1K resistors, the main difference lies in the level of precision they offer in representing the resistance value. Both types of resistors have a resistance value of 1K ohms, but the 5-band resistor provides more detailed information about its tolerance level.

Here's a breakdown of the key differences between 4-band and 5-band 1K resistors:

1. Representation of Resistance Value

   - 4-Band Resistor: The 4-band resistor uses four colored bands to represent the resistance value and the multiplier. For a 1K ohm resistor, the color bands would be Brown (1), Black (0), Red (Multiplier of 100), and Gold (Tolerance of +/- 5%). The resistance value is calculated as 10 x 100 = 1000 ohms (1K ohm).

   - 5-Band Resistor: The 5-band resistor uses five colored bands to represent the resistance value, the multiplier, and the tolerance. For a 1K ohm resistor, the color bands would be Brown (1), Black (0), Black (Multiplier of 10), Brown (Tolerance of +/- 1%), and Red (Tolerance of +/- 2%). The resistance value is calculated as 100 x 10 = 1000 ohms (1K ohm).

2. Precision and Accuracy

   - 4-Band Resistor: The 4-band resistor provides a lower level of precision because it does not specify the tolerance value. As a result, the actual resistance value can vary within a tolerance range of +/- 5%.

   - 5-Band Resistor: The 5-band resistor offers higher precision by including the tolerance value. It specifies the tolerance range, which allows for a more accurate representation of the resistance value. In this case, the tolerance is either +/- 1% or +/- 2%.

3. Applications

   - Both 4-band and 5-band 1K resistors can be used in various electronic circuits and applications that require a resistance value of 1K ohms. However, the 5-band resistor is preferred in applications where higher precision is crucial, such as in precision measuring instruments, calibration devices, and high-accuracy circuits.

In summary, the choice between a 4-band and 5-band 1K resistor depends on the level of precision and accuracy required for the specific application. If a higher level of accuracy is needed, the 5-band resistor with its specified tolerance is the better option. However, for general applications with less strict requirements, the 4-band resistor can still serve effectively.

Application of 1k Resistor

The 1k ohm resistor finds numerous applications in electronic circuits and devices due to its versatility and widespread availability. Some of the key applications of the 1k resistor are:

1. Voltage Dividers

1k ohm resistors are commonly used in voltage divider circuits. These circuits divide the input voltage into smaller fractions, allowing precise voltage levels to be obtained for various components in the circuit.

2. Current Limiting

In many electronic circuits, current needs to be limited to protect components from damage. The 1k resistor is often used as a current-limiting resistor in LED circuits and other low-power applications.

3. Biasing Circuits

Biasing is the process of establishing a desired operating point for active components like transistors. 1k resistors are frequently employed in biasing circuits to set the proper bias voltage or current.

4. Pull-Up and Pull-Down Resistors

1k ohm resistors are commonly used as pull-up or pull-down resistors in digital logic circuits. These resistors ensure that the input to a logic gate remains at a defined voltage level when not actively driven by a signal.

5. Signal Conditioning

In analog signal processing, 1k ohm resistors are employed in signal conditioning circuits to modify signal characteristics, such as attenuation or amplification, to suit specific requirements.

6. Timing Circuits

In combination with capacitors, 1k resistors are utilized in timing circuits, such as RC oscillators, to set the time constant and control the frequency of oscillation.

7. Sensor Interfacing

1k resistors are used to interface various sensors with microcontrollers or other electronic circuits. They help in adjusting sensor output signals to match the input requirements of the receiving circuitry.

8. Audio Amplifiers

In audio circuits, 1k resistors are often employed for biasing and as load resistors in various stages of amplification.

9. Filter Networks

In filter circuits, 1k ohm resistors are used as part of passive filter networks to control the frequency response and attenuate specific frequencies.

10. Feedback Networks

1k ohm resistors are utilized in feedback networks of op-amps and other amplifier circuits to determine gain, stability, and performance characteristics.

These are just a few examples of the broad range of applications for 1k ohm resistors. Their reliability, precision, and cost-effectiveness make them indispensable components in the world of electronics. Engineers and hobbyists alike continue to explore new and innovative ways to utilize the capabilities of 1k resistors in cutting-edge electronic designs.

Summary

This article introduces the reading method of 4-band and 5-band 1K resistors, and compares the differences of 1K resistors in different bands. I believe that you can easily understand the meaning of different bands when you encounter similar 33K color code resistors or 4.7K color code resistors in the future
