What is PCM5242
The PCM5242 is a high-performance stereo digital-to-analog converter (DAC) developed by Texas Instruments. It is designed to deliver excellent audio quality in a compact and cost-effective package, making it well-suited for a wide range of audio applications, including consumer electronics, automotive systems, and mid-range audio equipment.
Features of the PCM5242
Key features of the PCM5242 include:
Advanced Segment DAC Architecture
The PCM5242 utilizes TI's proprietary Advanced Segment DAC Architecture, which helps to achieve excellent dynamic performance and improved tolerance to clock jitter, resulting in clear and accurate audio reproduction.
24-bit/192kHz Resolution
With support for 24-bit audio depth and sampling rates up to 192 kHz, the PCM5242 can handle high-resolution audio formats, ensuring detailed and precise sound reproduction.
Integrated Features
The PCM5242 incorporates several useful features, such as selectable digital filters, an integrated PLL (Phase-Locked Loop) for simplified clocking, and a programmable miniDSP core for implementing custom audio processing functions.
Differential Output
The device offers a 4.2VRMS differential output, which helps to reduce noise and improve audio quality. This differential output also eliminates the need for DC blocking capacitors, simplifying the analog output stage design.
Flexibility
The PCM5242 supports various digital audio formats, including I2S, left-justified, right-justified, and TDM, providing flexibility for different system architectures. It also offers control and configuration options through SPI or I2C interfaces.
Power Efficiency
With a single 3.3V analog supply and 1.8V/3.3V digital supply operation, along with power-saving features like automatic power-down when audio clocks are inactive, the PCM5242 is designed for efficient operation in power-sensitive applications.
Specifications of the PCM5242
| Parameter | Value |
|---|
| Resolution | 24-bit |
| Sampling Rate | Up to 192 kHz |
| Signal-to-Noise Ratio (SNR) | 114 dB |
| Dynamic Range (DR) | 114 dB |
| Total Harmonic Distortion (THD+N) | -100 dB (0.001%) |
| Digital Audio Interfaces | I2S, Left-Justified, Right-Justified, TDM |
| Digital Filter Options | Selectable (Sharp/Slow Roll-off) |
| Analog Output | 4.2 VRMS Differential |
| Voltage Supply | 3.3V (Analog), 1.8V/3.3V (Digital) |
| Power Consumption | 30 mW (Typical) |
| Control Interfaces | SPI, I2C |
| Package | 32-pin QFN (5mm x 5mm) |
| Operating Temperature Range | -40°C to +85°C |
| Integrated Features | PLL, miniDSP core |
| Clock Jitter Tolerance | High |
| Target Applications | Consumer electronics, automotive, mid-range audio |
The PCM5242 is a delta-sigma digital-to-analog converter (DAC) that converts digital audio data into an analog audio signal. Its working principle can be described in the following steps:
Digital Input: The PCM5242 receives digital audio data through one of its supported digital audio interfaces, such as I2S, left-justified, right-justified, or TDM. The digital audio data typically consists of 16-bit to 24-bit PCM samples at sampling rates up to 192 kHz.
Oversampling and Noise Shaping: The digital audio data undergoes oversampling, which increases the sample rate by a factor of the oversampling ratio (OSR). This process helps to reduce the effects of quantization noise. The PCM5242 then applies noise shaping techniques, such as delta-sigma modulation, to push the quantization noise to higher frequencies outside the audio band.
Digital Filtering: The oversampled and noise-shaped digital audio data passes through a digital filter, which removes the out-of-band noise and shapes the frequency response. The PCM5242 offers selectable digital filter options, such as sharp roll-off or slow roll-off, to accommodate different preferences or system requirements.
Modulator: The filtered digital audio data is then fed into a delta-sigma modulator, which converts the multi-bit digital audio samples into a high-frequency, single-bit data stream. This process further shapes the noise and pushes it to higher frequencies.
DAC Core: The single-bit data stream from the modulator is sent to the DAC core, which consists of a 1-bit DAC. The 1-bit DAC converts the digital bitstream into an analog signal by rapidly switching between two voltage levels based on the incoming bitstream.
Analog Low-Pass Filter: The output of the DAC core contains the desired audio signal along with high-frequency noise. An analog low-pass filter is employed to remove the high-frequency noise and reconstruct the smooth analog audio waveform.
Differential Output: The PCM5242 provides a differential analog output, which means it has two output pins (positive and negative) that carry the same audio signal but with opposite polarity. This differential output helps to cancel out common-mode noise and improves the overall signal-to-noise ratio (SNR) of the analog audio signal.
Output Buffer: The differential analog audio signal is then buffered by an output amplifier stage to provide the necessary drive strength and impedance matching for connecting to downstream audio components, such as amplifiers or headphones.
Throughout this process, the PCM5242 utilizes its advanced segment DAC architecture, which helps to achieve excellent dynamic performance and improved tolerance to clock jitter. The integrated PLL (Phase-Locked Loop) helps to generate a clean and stable clock signal for the DAC, further reducing jitter and ensuring accurate timing of the analog output signal.
Applications of the PCM5242
Home audio systems
Wireless speakers
Soundbars and home theater systems
Portable audio players
Automotive audio
Professional audio equipment
Musical instruments and effects processors
Gaming consoles and peripherals
Televisions and set-top boxes
Computer audio systems
Headphones and headphone amplifiers
Conferencing and public address systems
Medical devices and hearing aids
Military and aviation communication equipment
Industrial control and monitoring systems
Pros and Cons of PCM5242
Pros
The PCM5242 boasts impressive audio performance, offering 24-bit/192kHz high resolution, 114dB SNR, -100dB THD+N, flexible digital interfaces, integrated digital filters, high output voltage, low power consumption, and a compact package, making it a versatile and efficient choice for high-quality audio applications.
Cons
The cons of the PCM5242 include the need for an external clock source and additional external components, limitation to stereo output, lack of built-in volume control or mute function, requirement for careful PCB layout and design considerations, potentially higher cost compared to lower-performance DACs, advanced features that may be unnecessary for simple, low-cost audio applications, and the need for a compatible digital audio source with the appropriate interface.
What is ESS DACs
ESS DACs are digital-to-analog converters designed and manufactured by ESS Technology, a leading company in the high-end audio chip market. These DACs are renowned for their exceptional audio quality and are widely used in premium consumer audio devices, professional audio equipment, and recording studios.
ESS DACs, particularly the Sabre series, are known for their ability to deliver high-resolution audio, wide dynamic range, low distortion, and excellent signal-to-noise ratios. They feature proprietary technologies such as the Hyperstream Architecture and Time Domain Jitter Eliminator, which help to minimize jitter and improve overall audio performance.
Some of the popular ESS DAC models include:
ESS ES9038PRO: A flagship 32-bit 8-channel DAC, widely used in high-end audio systems.
ESS ES9068AS: A 32-bit 8-channel DAC designed for mobile and portable applications.
ESS ES9028PRO: A 32-bit stereo DAC with excellent performance, used in many high-end audio devices.
ESS ES9281PRO: A 32-bit 2-channel DAC designed for professional audio applications.
ESS DACs are used in a variety of audio devices, such as:
High-end home audio systems and amplifiers
Portable digital audio players (DAPs)
USB DACs and audio interfaces
Professional recording equipment
High-end smartphones and tablets
The combination of premium components, advanced technologies, and exceptional audio performance has made ESS DACs highly sought-after in the high-end audio market. However, these DACs often come with a premium price tag compared to other DAC solutions.

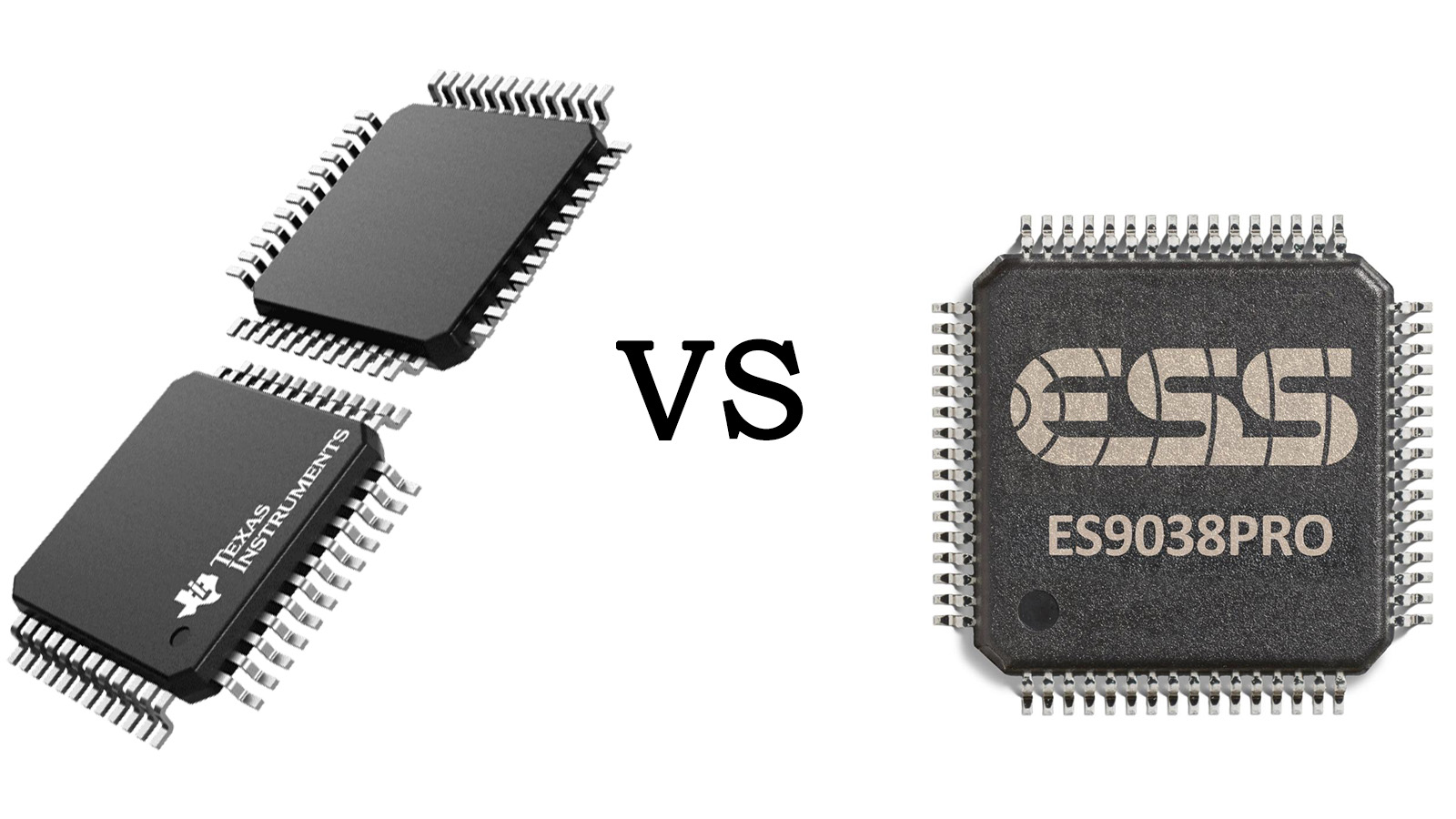

PCM5242 vs ESS: Comprehensive Comparison
| Feature | PCM5242 | ESS DACs |
|---|
| Audio Resolution | Up to 192kHz/24-bit | Up to 384kHz/32-bit (varies by model) |
| Dynamic Range | Up to 112dB | Typically exceeds 120dB |
| Total Harmonic Distortion + Noise (THD+N) | As low as -93dB | Typically lower than -120dB |
| Signal-to-Noise Ratio (SNR) | 112dB | Often surpasses 120dB |
| Jitter Performance | Low jitter characteristics | |
| Digital Filter Options | Multiple selectable digital filters | Some models offer customizable digital filters |
| Channel Count | 2 channels (stereo) | Up to 8 channels, depending on the specific model |
| Digital Audio Interfaces | I2S, TDM | Wide range of interfaces supported, including USB, S/PDIF, I2S, etc. |
| Power Consumption | Low power consumption design | Many models feature efficient, low power designs |
| Differential Output | Available | Available on many models |
| Volume Control | Digital volume control | Digital volume control available on some models |
| Analog Output Voltage | Up to 2Vrms | Varies by model, typically up to 2Vrms or higher |
| Proprietary Technologies | | - Hyperstream Architecture - Time Domain Jitter Eliminator - 32-bit Hyperstream DAC Architecture - Revered ESS Sabre DAC technology
|
| Target Applications | | - High-end home audio systems - Premium portable audio players - Professional recording equipment - Flagship smartphones and tablets
|
| Cost | Relatively affordable | Typically higher-priced, targeting the premium market |
The comparison table provides an in-depth analysis of the key features and performance metrics of the PCM5242 and ESS DACs. ESS DACs generally offer superior audio performance, with higher resolutions, wider dynamic range, lower distortion, and advanced jitter reduction technologies. They also provide more channels and wider compatibility with digital audio interfaces. In contrast, the PCM5242 is a cost-effective solution that still delivers excellent audio quality, making it suitable for a broad range of audio applications.
Conclusion
When choosing a DAC for an audio system, it is essential to consider the specific requirements of the application and the available budget. The PCM5242 from Texas Instruments and the ESS DACs, particularly the Sabre series, are two popular choices in the market. This comparison aims to help readers understand the key differences between these DACs and make an informed decision based on their needs.
Selection Suggestions:
High-end audio systems: For premium home audio systems, high-end portable audio players, and professional recording equipment, ESS DACs are the preferred choice. Their superior audio performance, advanced features, and compatibility with a wide range of digital audio interfaces make them ideal for demanding applications.
Budget-conscious applications: If cost is a primary concern, and the application does not require the highest levels of audio performance, the PCM5242 is an excellent choice. It offers impressive audio quality, low power consumption, and a compact design, making it suitable for consumer audio devices, portable devices, and cost-sensitive professional audio equipment.
Portable devices: Both PCM5242 and ESS DACs offer low power consumption options, making them suitable for portable devices. However, the PCM5242 may be more appealing due to its lower cost and smaller footprint.
Multichannel applications: For applications requiring more than two channels, ESS DACs are the better option, as they support up to 8 channels, depending on the specific model. The PCM5242 is limited to 2 channels (stereo).
Ultimately, the choice between PCM5242 and ESS DACs depends on the specific requirements of the application, such as audio performance, features, compatibility, and budget. By carefully considering these factors and referring to the comparison table, readers can make an informed decision and select the most suitable DAC for their needs.
