Introduction
A dual-color LED is a type of light-emitting diode (LED) that can emit two different colors of light. Unlike traditional monochrome LEDs, dual-color LEDs can adjust their output light color based on clever circuit designs, typically offering combinations of red, green, yellow, blue, and other colors. This flexibility makes dual-color LEDs widely applicable, from traffic lights to smart home lighting systems, and even in car tail lights and electronic displays.
In this article, we will explore the applications of dual-color LEDs, understand their unique advantages, and look at future development trends. By the end, you'll have a clearer understanding of the crucial role dual-color LEDs play in modern technology and design, and how they are changing our work and living environments.
What is a bi-color LED?
A bi-color LED (or dual-color LED) is an LED light that emits two different colors of light. This type of LED typically contains two separate light-emitting diodes (LEDs) within the same package, each emitting a different color—commonly red and green, though other color combinations like red and blue, or yellow and green, can also be used.
The working principle of dual-color LEDs is relatively simple: by controlling the brightness or on/off state of two different colored diodes, the color output can be mixed and varied. For instance, adjusting the brightness of the red and green LEDs can produce other colors like yellow or orange. This technology not only makes dual-color LEDs highly energy-efficient but also meets the varying color requirements of different scenarios.
Key Features of Bi-Color LEDs:
Two Color Outputs: The primary characteristic of a bi-color LED is that it can emit two distinct colors, either by switching between them or mixing them. The two colors are usually controlled independently to achieve different effects.
Types of Bi-Color LEDs:
Common Anode Bi-Color LED: The two LED chips share a common anode (positive pin), and the cathodes (negative pins) are separate. Each cathode controls one of the colors. You can turn on either color by connecting the appropriate cathode to ground, or both to get a mixed color.

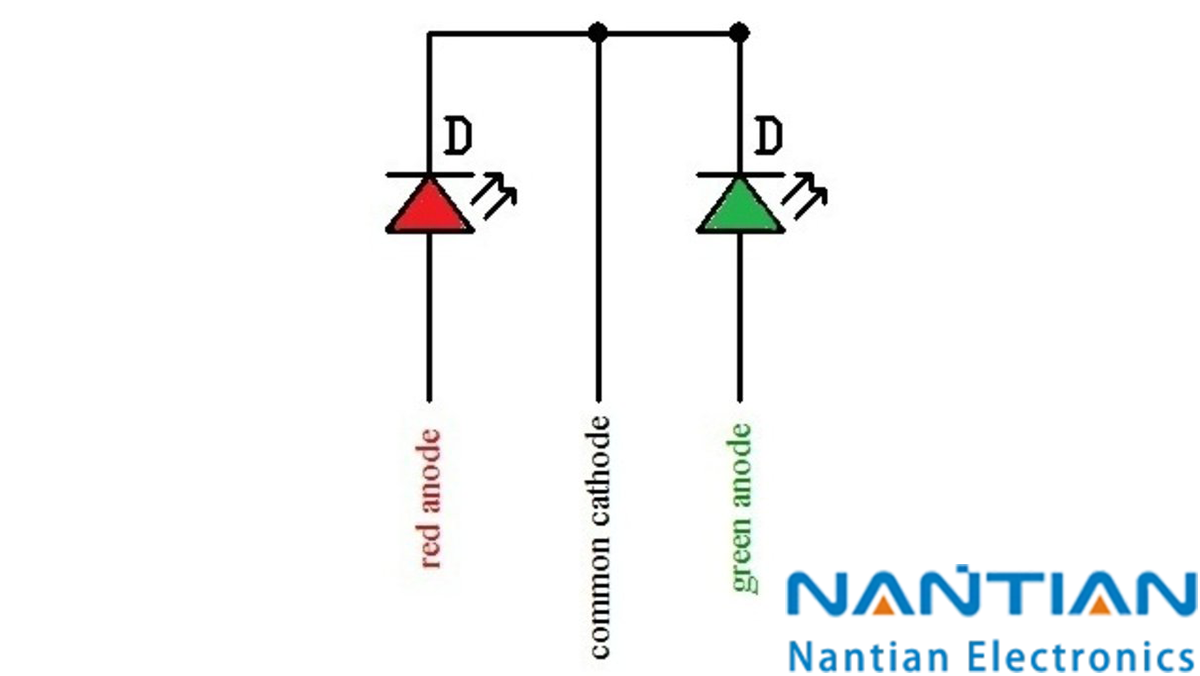

Common Cathode Bi-Color LED: The two LED chips share a common cathode (negative pin), and the anodes (positive pins) are separate. Each anode controls one of the colors. The desired color can be turned on by applying voltage to the respective anode.
Color Mixing: The two LEDs can emit their colors at the same time, resulting in a third color (for example, when red and green LEDs are both on, the result might be yellow). This allows for greater flexibility in color representation without needing additional components.
Common Applications:
Status Indicators: Bi-color LEDs are often used in electronic devices as status indicators. For example, a red light may indicate a problem or warning, while a green light may indicate normal operation.
Traffic Lights and Displays: These LEDs are also used in traffic signals and displays to show different states, such as "stop" (red) or "go" (green).
Automotive Lighting: Used in vehicle lighting systems, such as dashboard indicators, brake lights, and turn signals.
How Dual-Color LEDs Work
The working principle of dual-color LEDs is based on basic LED (light-emitting diode) technology, but with a key feature: precise control of the intensity of two different colored diodes (usually red and green) to achieve various color combinations and variations.
In a typical dual-color LED, there are two separate light-emitting diodes—one that emits red light and the other that emits green light. The light from these two LEDs can be controlled independently via electronic circuits, allowing them to light up at different times or simultaneously, thus creating various color combinations.
Color Control and Mixing Principle
Individually controlling each LED's brightness:
The intensity of each LED’s light can be adjusted by controlling the current flowing through it. For instance, increasing the current to the red LED makes it brighter, while decreasing the current to the green LED makes its light less intense, thereby highlighting the red light.
When both LEDs are on at the same time, their light can mix according to their respective brightness levels, resulting in different colors.
Formation of color combinations:
Red and Green Mix: The most common dual-color LED combination is red and green. By adjusting the brightness of both LEDs, various colors can be produced, such as yellow and orange.
For example: When the red LED is brighter and the green LED is weaker, the resulting light might be orange or yellow. If both LEDs are equally bright, the color might be white or close to white.
Primary Color Mixing: Dual-color LEDs can also rely on the mixing principle of the three primary colors (red, green, blue) to generate other colors. While RGB LEDs provide more color variations, dual-color LEDs can still meet most practical applications.
Controlling Color Through Current or Voltage
The color change in dual-color LEDs is mainly achieved by adjusting the current or voltage:
Current control: The current adjustment directly affects the brightness of the LEDs. By adjusting the current flowing through the red and green LEDs, their brightness can be precisely controlled. Typically, when the current for the red LED is low and for the green LED is high, the light appears yellow. Conversely, when the red current is higher, the light leans more towards red.
Voltage control: In some dual-color LEDs, the color may also be affected by voltage. Different voltage levels can influence the operation of the LED, making it favor one color more than another.
Control Circuits and Driving Methods
To enable color switching and mixing effects in dual-color LEDs, special circuit designs are typically required. These circuits independently control the brightness of each LED, ensuring that the dual-color LED lights up with the desired intensity and timing. For example, PWM (pulse-width modulation) technology is commonly used to control the LED brightness. This method adjusts the switching frequency of each LED, enabling precise brightness control and more complex color variations.
With this setup, dual-color LEDs can flexibly display different color combinations and offer a wide range of possibilities in their applications.
Applications of Dual-Color LEDs
With their high efficiency, flexibility, and energy-saving properties, dual-color LEDs have found widespread applications across various industries. Below are some common use cases for dual-color LEDs:
1. Displays and Indicator Lights
Electronic Device Displays: Dual-color LEDs are commonly used in electronic devices to indicate operational status. For example, many electronic products (such as TVs, audio equipment, computers, and home appliances) use dual-color LEDs to display different working states. Green might indicate normal operation, while red could signal a malfunction or off-state.
Traffic Signals: Dual-color LEDs are also widely used in traffic signals. By switching between red and green, dual-color LEDs can easily display different signals. Their use not only improves visibility but also reduces energy consumption, enhancing overall efficiency.
Other Indicator Lights: Dual-color LEDs are also commonly used in battery indicators, network status lights, and other devices to display various states, allowing users to easily obtain important device information at a glance.
2. Automotive Applications
Automotive Tail Lights: The use of dual-color LEDs in automotive tail lights is especially notable. By combining red, yellow, orange, and other colors, dual-color LEDs can help display various signals, such as brake lights, turn signals, and daytime running lights. This not only enhances the visual effect of tail lights but also enables more efficient energy use.
Interior Lighting: Besides external tail lights, dual-color LEDs are often used in car interior lighting. Drivers can adjust the color and brightness of the lights to create a personalized environment based on different occasions or moods. The flexibility of dual-color LEDs makes them a popular choice for luxury and custom cars.
3. Interior Decoration
Home Lighting: Dual-color LEDs are widely used in home and commercial space decoration lighting. By mixing different colors (e.g., red and green), they can create various atmospheres within indoor spaces. For example, warm yellow or red lighting can be used for intimate settings like dinner, while cooler tones like blue and green can be used to create a lively atmosphere for parties or entertainment.
Holiday Decorations: During holidays and celebrations, dual-color LEDs are commonly used in decorative light strips or lighting installations to add color and fun to the festivities. Whether it's Christmas lights or other holiday displays, dual-color LEDs can create dynamic effects with changing colors, enhancing the festive atmosphere.
4. Wearable Devices
Smartwatches and Health Monitoring Devices: Dual-color LEDs are frequently used in wearable devices to display device status or health data. For instance, some smartwatches may use red and green indicator lights to show heart rate or activity status—green indicating normal, while red may highlight issues (such as excessive activity or unstable heart rate).
Sports Gear and Safety Equipment: Dual-color LEDs are used in various sports gear (such as running vests, shoes, etc.) to enhance visibility and safety. At night, dual-color LEDs help others spot the wearer, especially when adjusting the light color to indicate the wearer's status or direction.
5. Other Applications
Medical Equipment: Dual-color LEDs are also employed in some medical devices to indicate the status of the equipment or convey patient health information. Certain medical monitoring instruments use dual-color LEDs to signal whether immediate attention is needed or if there are abnormal readings.
Advertising and Signage: Dual-color LEDs are used in billboards and public signage to create eye-catching visual effects, enhancing the readability and attractiveness of the signage. For example, some LED billboards use dual-color LEDs to display more varied content, capturing the attention of passersby.
Advantages of Dual-Color LEDs
Dual-color LEDs offer distinct performance benefits that make them widely used across various applications. Compared to traditional light sources, dual-color LEDs have several advantages. Here are some of the most notable ones:
1. Energy Efficiency
High Light Efficiency: Dual-color LEDs are far more energy-efficient than traditional incandescent or fluorescent bulbs. LEDs have a much higher luminous efficacy, meaning they can provide more light output while consuming less power. This not only helps reduce energy consumption but also lowers electricity costs for users.
Reduced Energy Waste: Traditional light sources produce a significant amount of heat during operation, whereas LEDs emit minimal heat, making them much more energy-efficient and environmentally friendly. Dual-color LEDs, in particular, help avoid wasting energy as heat, further contributing to their energy-saving properties.
2. Long Lifespan
Extended Service Life: Dual-color LEDs last far longer than traditional bulbs. Typically, LEDs have a lifespan of 25,000 to 50,000 hours, or even longer, while traditional incandescent bulbs last only about 1,000 hours, and fluorescent lights typically last a few thousand hours. A longer lifespan means fewer replacements and lower maintenance costs.
Durability: LEDs are more durable than other light sources. They are less affected by vibration or shock, making them particularly suitable for environments with high vibration, such as automotive or industrial applications.
3. Color Flexibility
Wide Range of Color Combinations: Dual-color LEDs can generate various color combinations by adjusting the brightness of the red and green LEDs. For example, by controlling the intensity of both LEDs, colors like yellow, orange, or purple can be achieved. This color flexibility allows dual-color LEDs to offer more diverse visual effects in various applications.
Dynamic Changes: Dual-color LEDs can provide not only static color switches but also dynamic effects, such as fading, flashing, and other transitions, through circuit control. This gives designers and developers greater creative freedom, allowing them to meet the specific needs of different scenarios.
4. Compact Size
Compact Design: Due to their small size, dual-color LEDs are ideal for use in compact devices and applications with limited space. They are typically much smaller than traditional bulbs or fluorescent lights, which allows for more flexible design choices, especially in portable devices or embedded systems.
Potential for Integrated Design: Due to their small footprint, dual-color LEDs can easily be integrated into more complex electronic circuits and devices, such as smartwatches, automotive control panels, and more. They occupy very little space yet can offer multiple functions, making them crucial for modern device design.
Shape and Symbol of a Two-Color LED
A two-color LED is typically designed to emit two distinct colors, and its physical shape and symbol represent its dual functionality. Here's a breakdown:
Shape of a Two-Color LED
Two-pin Configuration:
The most common shape for a two-color LED is a small, cylindrical body with two leads (pins), similar to a standard LED. However, the key difference is that each lead is connected to a separate internal LED chip (one for each color), often red and green.
The two pins will either correspond to a common anode or common cathode, depending on the design.
Three-pin Configuration:
In a three-pin configuration, the two pins (typically the left and right) correspond to the two colors (for example, red and green), and the middle pin serves as the common connection (either anode or cathode).
The middle pin allows the user to control which color LED is lit by supplying current to either the red or green LED.
Square or Oval Packages:
The LED is often packaged in a small rectangular, oval, or round casing, similar to typical single-color LEDs. The color of the casing is usually clear or diffused, allowing the mixed light to pass through and give a more uniform color appearance.
Symbol of a Two-Color LED
The symbol for a two-color LED typically consists of two arrows representing light emission, each with a distinct color representing the two different light-emitting diodes inside.
Basic LED Symbol:
A traditional LED symbol is a triangle pointing toward a line (the cathode). The light emission is often depicted with an arrow, but for two-color LEDs, this symbol will often show two arrows indicating the two colors, typically using different lines or labels to indicate the different colors, such as red and green.
Dual-Color Symbol:
In the case of a two-color LED, the symbol is often represented by two different colored arrows (one for each LED inside the package). These arrows will show the light emission of each color, and the symbols will be interconnected by a shared line or pin indicating the common anode or cathode.
