Home / Products  /  Switches  /  DIP Switches  /  DPL02

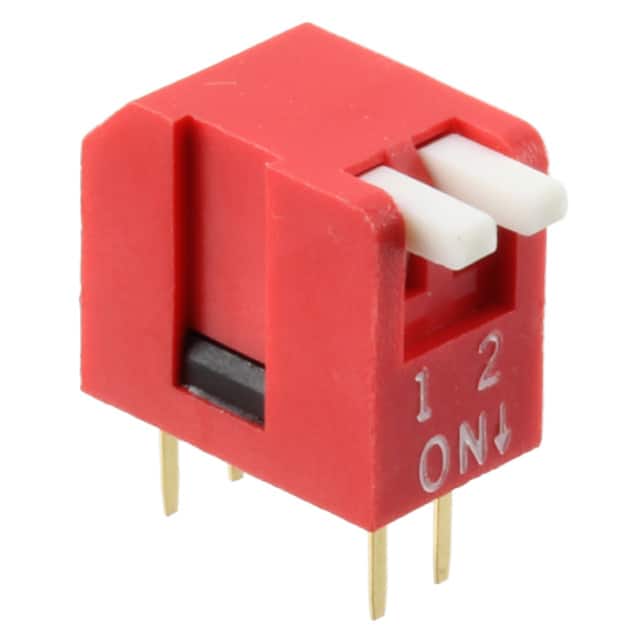

Image shown is a representation only. Exact specifications should be obtain- ed from the product data sheet.

Apem Inc. DPL02

Manufacturer Part Number : DPL02
Manufacturer : Apem Inc.
Description : PIANO STYLE DIP SWITCH 24V
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Datasheet : DPL02.PDF DPL02 PDF
Download Datasheet : DPL02 Details.PDF DPL02 PDF
EDA / CAD Models : DPL02 by SnapEDA
Quantity:
2049 2050 6604192 http://www.apem.com/files/apem/brochures/switch-DIP-DS-DP-DA-ENG.pdf Apem-Inc/DPL02 6604192
Series:DPL
Circuit:SPST
Number of Positions:2
Current Rating:50mA
Voltage Rating:24VDC
Actuator Type:Piano
Actuator Level:Raised
Contact Material:Phosphor Bronze
Contact Finish:Gold
Height Above Board:0.402" (10.20mm)
Mounting Type:Through Hole, Right Angle
Termination Style:PC Pin
Pitch:0.100" (2.54mm), Full
Washable:No
Features:Epoxy Sealed Terminals

Request for Quotation

Technical Parameters of DPL02

Series:DPL
Circuit:SPST
Number of Positions:2
Current Rating:50mA
Voltage Rating:24VDC
Actuator Type:Piano
Actuator Level:Raised
Contact Material:Phosphor Bronze
Contact Finish:Gold
Height Above Board:0.402" (10.20mm)
Mounting Type:Through Hole, Right Angle
Termination Style:PC Pin
Pitch:0.100" (2.54mm), Full
Washable:No
Features:Epoxy Sealed Terminals

Product Details

We can supply Apem Inc. part# DPL02, use the request quote form to request DPL02 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DPL02. The price and lead time for DPL02 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# DPL02. We look forward to doing business with you.
