Mitsubishi Electric PM100RL1A120 Overview
Explore the Mitsubishi Electric PM100RL1A120, an Intelligent Power Module (IPM) featuring Insulated Gate Bipolar Transistor (IGBT) technology. Designed for power applications, the PM100RL1A120 offers a robust solution with a 100A current rating and a 1.2kV voltage rating.

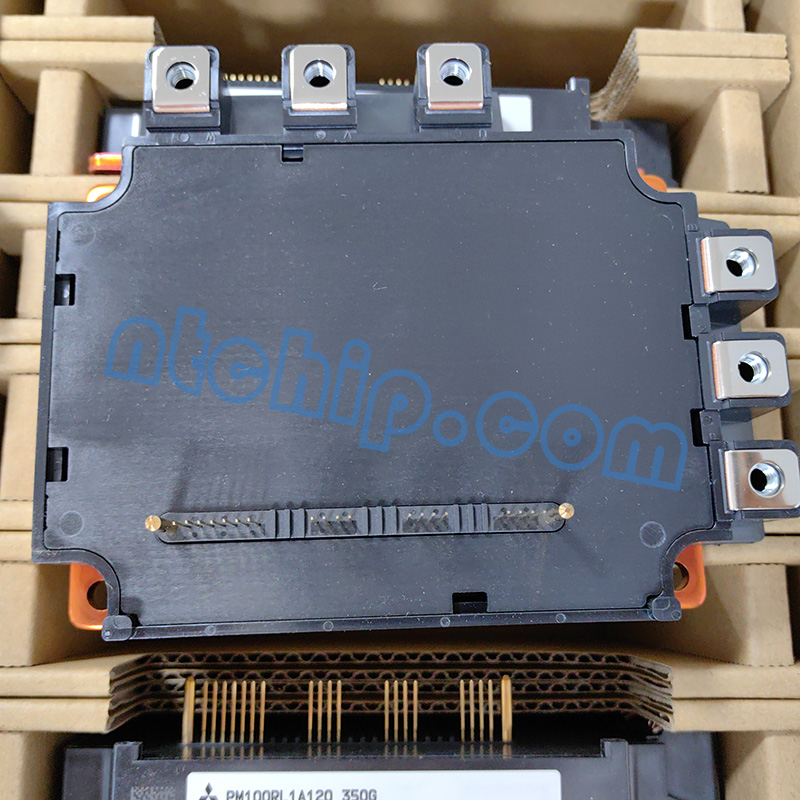

PM100RL1A120 Top Picture
Key Features of PM100RL1A120
Intelligent Power Module: The PM100RL1A120 is an advanced IPM integrating IGBT power devices for efficient and reliable performance.
High Current and Voltage Rating: With a 100A current rating and a 1.2kV voltage rating, it is suitable for demanding power applications.
Isolation Voltage: The module provides a high isolation voltage of 2.5kV, ensuring safety and reliability in operation.
Compact Module Design: Housed in a module case style, the PM100RL1A120 is space-efficient and easy to integrate into various systems.
Intellimod L1 Series for Smart Power Solutions
The PM100RL1A120 belongs to the Intellimod L1 series, a lineup of intelligent power modules from Mitsubishi Electric designed for smart power solutions. This series combines advanced semiconductor technology with intelligent control features.
PM100RL1A120 Bottom Picture
Advantages of PM100RL1A120
By choosing the PM100RL1A120, you benefit from:
Power and Efficiency: Utilize IGBT technology for high-power applications with efficiency.
Isolation and Safety: The 2.5kV isolation voltage ensures safety in various operating conditions.
Smart Power Solutions: Integrate seamlessly into smart power systems with the Intellimod L1 series.
Applications of Mitsubishi Electric PM100RL1A120
The Mitsubishi Electric PM100RL1A120 Intelligent Power Module is well-suited for a variety of applications where high-power and efficient performance are crucial. Some key application areas include:
Motor Drives: Utilize the PM100RL1A120 in motor drive applications, benefiting from its high current rating and efficient power delivery for precise control.
Industrial Power Systems: The module finds applications in industrial power systems, offering a reliable solution for high-power requirements in diverse industrial settings.
Renewable Energy Systems: Incorporate the PM100RL1A120 in renewable energy systems, such as inverters for solar or wind power generation, ensuring efficient and sustainable energy conversion.
Power Inverters: Use the module in power inverters where converting DC power to AC power is essential, ensuring a smooth and controlled output.
Smart Power Solutions: The PM100RL1A120 is suitable for applications in smart power systems that require intelligent control features and high-performance power delivery.
With its versatility and robust design, the PM100RL1A120 addresses the power needs of various industries and applications, making it a reliable choice for demanding environments.
Rely on PM100RL1A120 for Robust Power Solutions
For robust and efficient power solutions, the Mitsubishi Electric PM100RL1A120 Intelligent Power Module stands out with its high current and voltage ratings, compact design, and integration into smart power systems.
