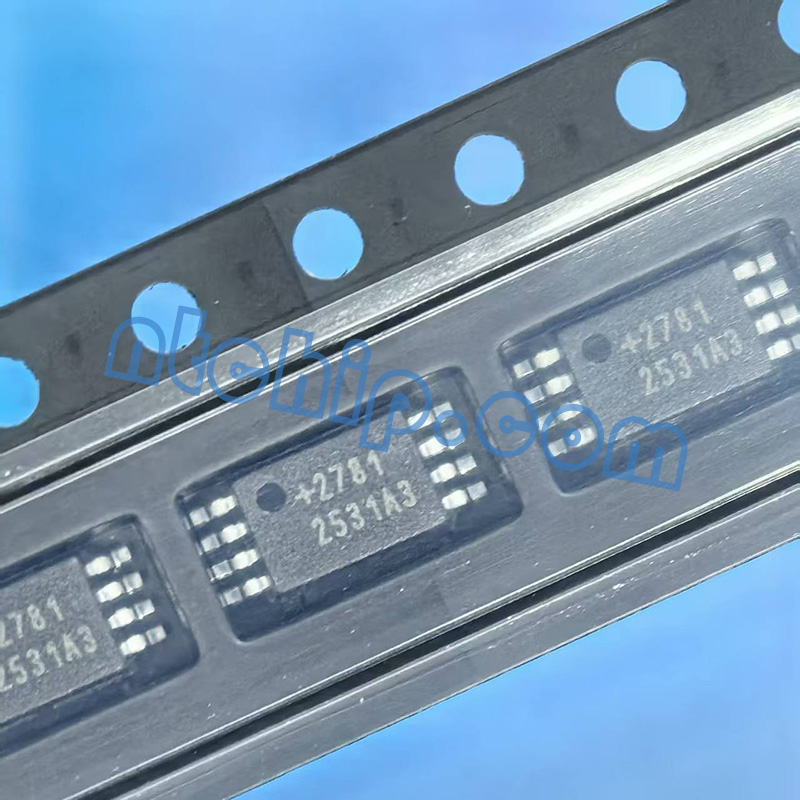

Q1: What are the main features of the DS2781E+T&R?
The DS2781E+T&R is a battery fuel gauge and monitoring IC that combines precision voltage, current, and temperature measurement functions in a compact package. It supports both one-cell and two-cell battery applications and uses advanced coulomb-counting technology to estimate remaining battery capacity. Key features include a temperature-stable internal timebase, low-battery warning capability, automatic backup of capacity and age-estimation data to nonvolatile EEPROM, calibration support for low-cost sense resistors, 24-byte parameter EEPROM, 16-byte user EEPROM, a unique device ID, and a simple 1-Wire® communication interface.
Q2: What is the DS2781E+T&R used for?
The DS2781E+T&R is commonly used in rechargeable battery-powered products that require accurate battery monitoring and fuel gauging. Typical applications include portable medical devices, handheld instruments, battery packs, wireless communication equipment, consumer electronics, industrial portable systems, and other products where monitoring battery capacity, health, and operating conditions is critical for reliable operation.
Q3: Does the DS2781E+T&R have alternative manufacturers and part numbers?
Yes. Similar battery fuel gauge and battery monitoring ICs are available from manufacturers such as Texas Instruments, Analog Devices, Renesas Electronics, Microchip Technology, and onsemi. Comparable part numbers depend on the battery chemistry, cell count, communication interface, fuel-gauging method, and required accuracy, so the most suitable replacement should be selected according to the specific application requirements.
Q4: Is technical support available for this part?
Yes. Technical support is available through Analog Devices (which acquired Maxim Integrated) and authorized distributors. Support resources typically include datasheets, application notes, reference designs, software tools, and engineering documentation. Nantian Electronics can also provide product information, datasheet access, inventory availability, and technical assistance to help customers with component selection, design integration, and procurement needs.
