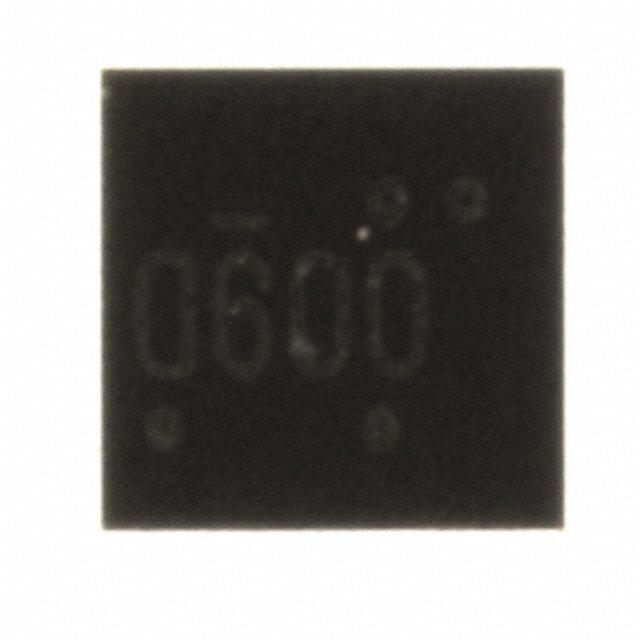

Image shown is a representation only. Exact specifications should be obtain- ed from the product data sheet.

ON Semiconductor FPF1009

Manufacturer Part Number : FPF1009
Manufacturer : ON Semiconductor
Description : IC LOAD SWITCH P-CH 2X2 MICROFET
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Datasheet : FPF1009.PDF FPF1009 PDF
Download Datasheet : FPF1009 Details.PDF FPF1009 PDF
EDA / CAD Models : FPF1009 by SnapEDA
Quantity:
1 142 7531129 https://www.fairchildsemi.com/datasheets/FP/FPF1007.pdf ON/FPF1009 7531129
Switch Type:General Purpose
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:1.2 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):1.5A
Rds On (Typ):30 mOhm
Input Type:Non-Inverting
Features:Load Discharge, Slew Rate Controlled
Fault Protection:-
Operating Temperature:-40~C ~ 85~C (TA)
Package / Case:6-VDFN Exposed Pad
Supplier Device Package:6-MicroFET (2x2)

Request for Quotation

Technical Parameters of FPF1009

Switch Type:General Purpose
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:1.2 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):1.5A
Rds On (Typ):30 mOhm
Input Type:Non-Inverting
Features:Load Discharge, Slew Rate Controlled
Fault Protection:-
Operating Temperature:-40~C ~ 85~C (TA)
Package / Case:6-VDFN Exposed Pad
Supplier Device Package:6-MicroFET (2x2)

Product Details

We can supply ON Semiconductor part# FPF1009, use the request quote form to request FPF1009 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FPF1009. The price and lead time for FPF1009 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# FPF1009. We look forward to doing business with you.
