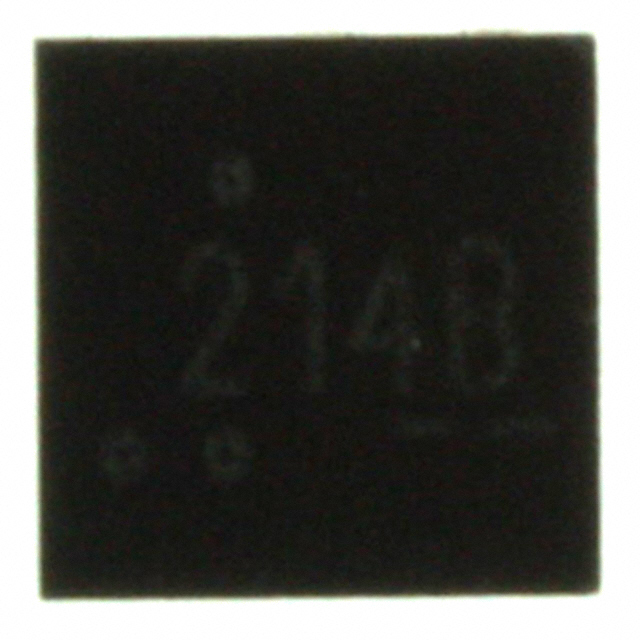

Image shown is a representation only. Exact specifications should be obtain- ed from the product data sheet.

ON Semiconductor FPF2214

Manufacturer Part Number : FPF2214
Manufacturer : ON Semiconductor
Description : IC LOAD SWITCH MICROFET6
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Datasheet : FPF2214.PDF FPF2214 PDF
Download Datasheet : FPF2214 Details.PDF FPF2214 PDF
EDA / CAD Models : FPF2214 by SnapEDA
Quantity:
1 142 7533282 https://www.fairchildsemi.com/datasheets/FP/FPF2213.pdf ON/FPF2214 7533282
Switch Type:General Purpose
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:1.8 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):250mA
Rds On (Typ):250 mOhm
Input Type:Non-Inverting
Features:Load Discharge, Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:-40~C ~ 85~C (TA)
Package / Case:6-VDFN Exposed Pad
Supplier Device Package:6-MicroFET (2x2)

Request for Quotation

Technical Parameters of FPF2214

Switch Type:General Purpose
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:1.8 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):250mA
Rds On (Typ):250 mOhm
Input Type:Non-Inverting
Features:Load Discharge, Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:-40~C ~ 85~C (TA)
Package / Case:6-VDFN Exposed Pad
Supplier Device Package:6-MicroFET (2x2)

Product Details

We can supply ON Semiconductor part# FPF2214, use the request quote form to request FPF2214 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FPF2214. The price and lead time for FPF2214 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# FPF2214. We look forward to doing business with you.
