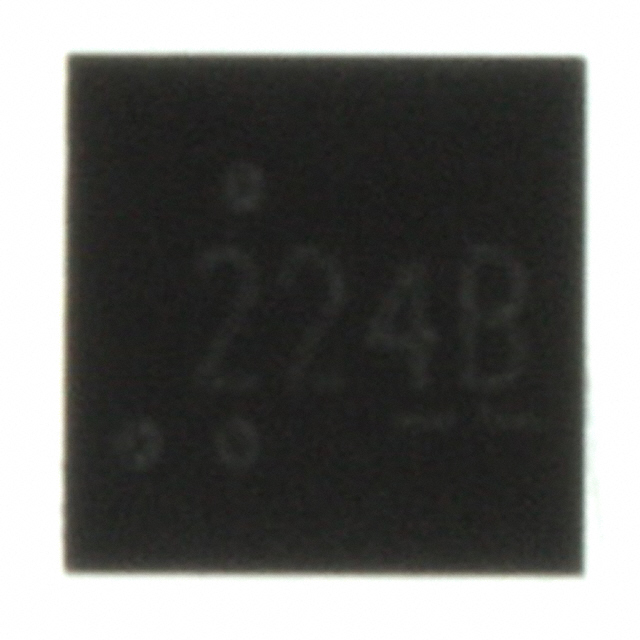

Image shown is a representation only. Exact specifications should be obtain- ed from the product data sheet.

ON Semiconductor FPF2224

Manufacturer Part Number : FPF2224
Manufacturer : ON Semiconductor
Description : IC LOAD SWITCH MICROFET6
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Datasheet : FPF2224.PDF FPF2224 PDF
Download Datasheet : FPF2224 Details.PDF FPF2224 PDF
EDA / CAD Models : FPF2224 by SnapEDA
Quantity:
1 142 7532074 https://www.fairchildsemi.com/datasheets/FP/FPF2223.pdf ON/FPF2224 7532074
Switch Type:General Purpose
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:1.8 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):625mA
Rds On (Typ):140 mOhm
Input Type:Non-Inverting
Features:Load Discharge, Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:-40~C ~ 85~C (TA)
Package / Case:6-VDFN Exposed Pad
Supplier Device Package:6-MicroFET (2x2)

Request for Quotation

Technical Parameters of FPF2224

Switch Type:General Purpose
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:1.8 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):625mA
Rds On (Typ):140 mOhm
Input Type:Non-Inverting
Features:Load Discharge, Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:-40~C ~ 85~C (TA)
Package / Case:6-VDFN Exposed Pad
Supplier Device Package:6-MicroFET (2x2)

Product Details

We can supply ON Semiconductor part# FPF2224, use the request quote form to request FPF2224 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FPF2224. The price and lead time for FPF2224 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# FPF2224. We look forward to doing business with you.
