Introduction to CR1225 3V battery
A CR1225 button battery is a small, coin-shaped lithium battery that is commonly used in small electronic devices such as watches, calculators, car key fobs, and medical devices. It has a diameter of 12 mm and a height of 2.5 mm. The CR stands for Coin (shape) and Lithium (chemistry). The 1225 indicates the size, with 12 representing the diameter in mm and 25 meaning 2.5 mm in height. CR1225 batteries provide 3 volts of power and have a typical capacity of around 50 mAh.

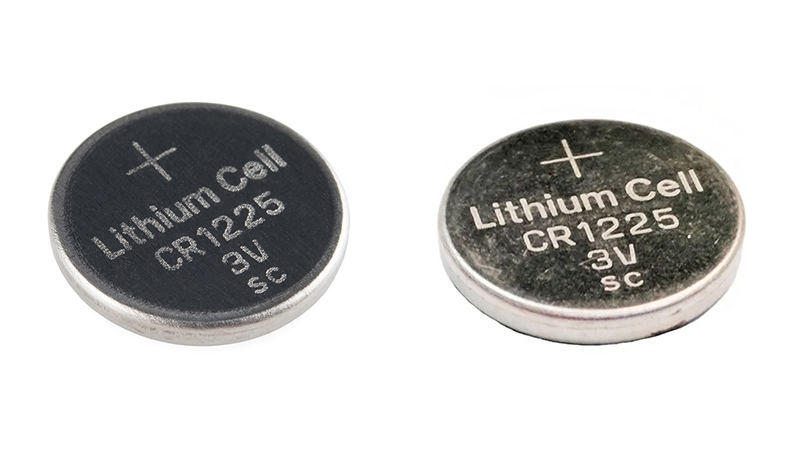

![CR1225 Battery CR1225 Battery](/uploadimg/CR1225-Battery.jpg)
3V CR1225 Battery
CR1225 battery Dimension
The CR1225 battery has dimensions of approximately 12.5 mm in diameter and 2.5 mm in height. This size is indicated by the numbers in its name, where "12" refers to the diameter in millimeters and "25" indicates the height in tenths of a millimeter. The dimensions of the CR1225 battery are as follows:

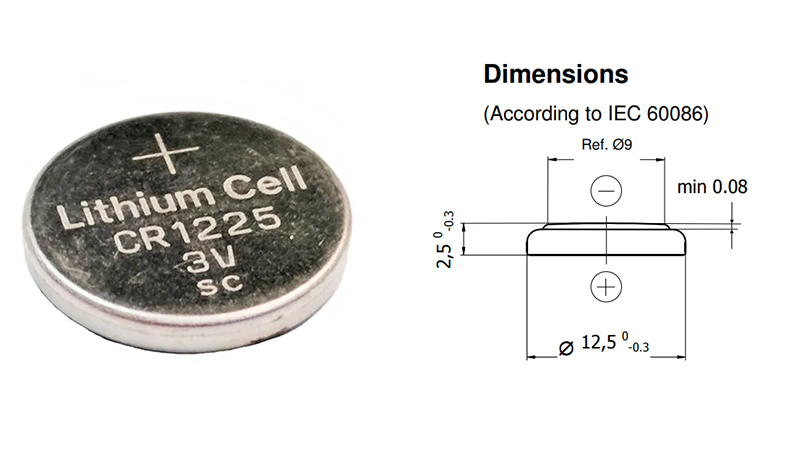

![CR1225 Dimensions CR1225 Dimensions](/uploadimg/CR1225-Dimension.jpg)
CR1225 Battery Size Chart
Parameters
Diameter: 12 mm
Height: 2.5 mm
Coin/button shaped
Nominal voltage: 3 V
Typical capacity: ~50 mAh
Self Discharge at 23°C: < 1% / year
Chemical System: Li / MnO2
Contains lithium as anode material
Applications
CR1225 batteries are commonly used in small electronic devices such as:
CR1225 Battery Equivalent
3v cr1225 battery equivalents include: 5020LC, BR1225, CR1225, DL1225, LM1225, ECR1225, L30, KCR1225 and KECR1225.
5020LC: This battery is directly interchangeable with the CR1225. They share the same voltage and physical dimensions, making the 5020LC a perfect substitute in any device originally designed for a CR1225.
BR1225: The BR1225 is similar to the CR1225 but is often used in conditions requiring higher temperature resistance. It shares the same voltage and size, hence can be used interchangeably with CR1225 in most devices.
DL1225: Manufactured by Duracell, the DL1225 offers the same voltage and size as the CR1225. It is known for its reliability and is suitable for use in all devices that require a CR1225.
LM1225: This model matches the CR1225 in both voltage and physical dimensions. It is another alternative that can be used wherever a CR1225 is needed.
ECR1225: Energizer’s equivalent to the CR1225, the ECR1225 is known for its long shelf life and reliability. It can be used as a direct replacement for the CR1225 in any compatible device.
L30: While not as commonly referenced, the L30 is compatible in terms of size and voltage with the CR1225 and can be used as an alternative in most applications where the CR1225 is required.
KCR1225 and KECR1225: These are specific versions that may be available under certain brands or in particular markets. They are designed to meet the same specifications as the CR1225 and can be used interchangeably.
CR1225 Manufacturer
CR1225 batteries are produced by many well-known battery manufacturers. The CR1225 batteries produced may have slightly different specifications or performance characteristics, but all have the same standard size and voltage. Here are some well-known manufacturers:
Panasonic
Known for reliability and consistency, Panasonic produces the CR1225 battery that is widely used in various electronic devices.
Sony
Sony batteries are reputed for their high quality and durability, making their CR1225 batteries a popular choice for critical applications.
Energizer
Energizer offers the ECR1225 variant, which is equivalent to the CR1225, known for its long shelf life and stable performance.
Duracell
The DL1225 battery from Duracell is another equivalent to the CR1225, recognized for its reliability especially in varying temperature conditions.
Maxell
Maxell is another key player in the production of CR1225 batteries, often chosen for their consistency and efficiency.
BR1225 vs CR1225 Batteries

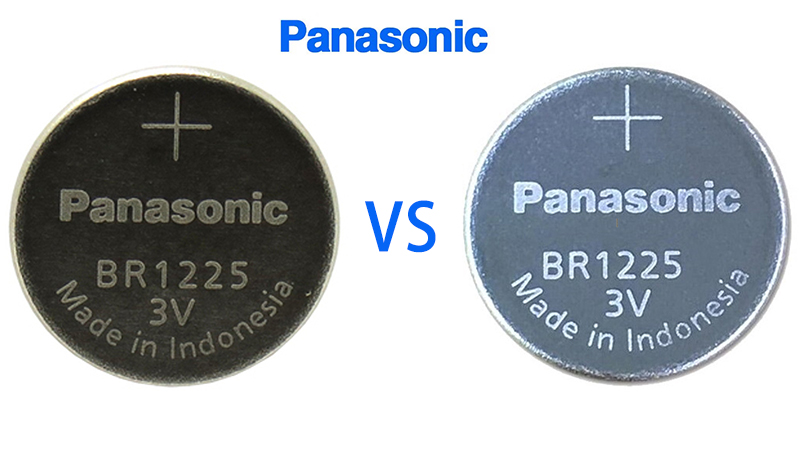

![BR1225 vs CR1225 Battery BR1225 vs CR1225 Battery](/uploadimg/BR1225-vs-CR1225.jpg)
BR1225 vs CR1225 Battery
The BR1225 and CR1225 are both 3V lithium coin cells with a diameter of 12.5 mm and a height of 2.5 mm. They have similar capacities, with the BR1225 having a typical capacity of 48mAh and the CR1225 around 50mAh. Both types can be used on small electronic devices such as watches, calculators, keychains, etc. Here are the main differences between BR1225 and CR1225 batteries:
BR1225 vs CR1225: Chemistry
The CR1225 battery is based on lithium manganese dioxide chemistry. It offers a good balance of high energy density and stable voltage, making it suitable for a wide range of applications.
The BR1225 battery uses lithium carbon monofluoride chemistry. It is generally more stable under a range of temperature conditions and has a slightly higher self-discharge rate, making it less ideal for long-term applications compared to CR1225.
BR1225 vs CR1225: Temperature Resistance
BR1225 battery is more suitable for high temperature environments. Its chemical properties allow it to operate effectively over a wider temperature range, typically -30°C to +85°C. CR1225 batteries, while also capable of operating in a wide range of temperatures, may not perform as well as BR1225 in extreme conditions.
BR1225 vs CR1225: Applications
CR1225 batteries are commonly used in watches, calculators and other portable devices that require stable power supply over a long period of time.
BR1225 batteries are often chosen for applications that require battery operation in higher temperature environments, such as car key fobs and medical equipment.
BR1225 vs CR1225: Interchangeability
While both batteries can be interchangeable in terms of size and voltage, the choice between them should consider the device's temperature requirements and expected battery life. The BR1225's superior temperature resistance might be more appropriate for certain uses, whereas the CR1225's generally longer life and stable output make it suitable for everyday electronic devices.
Frequently Asked Questions
1. What is the voltage of a CR1225 battery?
The CR1225 battery provides a nominal voltage of 3 volts.
2. What is the capacity of a CR1225 battery?
The capacity of a CR1225 battery typically ranges around 50 milliampere-hours (mAh).
3. What are the dimensions of a CR1225 battery?
The CR1225 battery has a diameter of 12.5 mm and a thickness of 2.5 mm.
4. What is the shelf life of a CR1225 battery?
The shelf life of a CR1225 battery is generally around 10 years when stored under standard conditions. This long shelf life is due to the stable lithium manganese dioxide chemistry used in these batteries.
5. Can the CR1225 battery be recharged?
No, the CR1225 is a primary battery, meaning it is designed for single use and is not rechargeable. Attempting to recharge a CR1225 can be dangerous and is not recommended.
6. How does temperature affect the performance of a CR1225 battery?
While CR1225 batteries can operate in a range of temperatures, extreme conditions can affect their performance. Typically, they perform well within a temperature range of -20°C to +70°C. However, performance might degrade outside this range.
7. What should I consider when replacing a CR1225 battery?
When replacing a CR1225 battery, ensure that the replacement battery matches the specifications of the original.
