What is Throttle Position Sensor

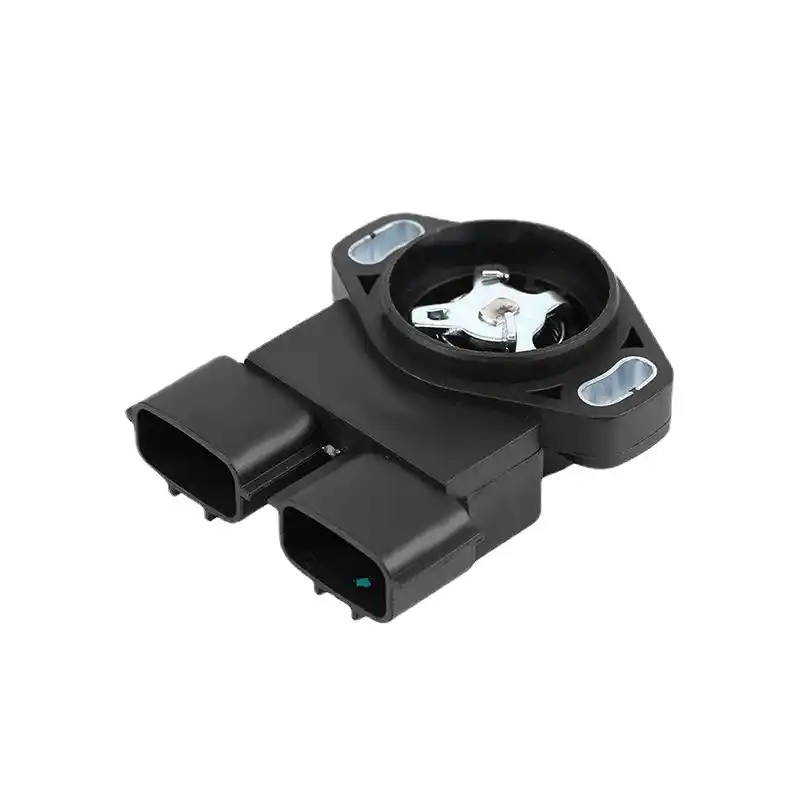

A Throttle Position Sensor (TPS) is an essential component of an internal combustion engine, typically found in vehicles equipped with fuel injection systems. It monitors the position of the throttle valve, which regulates the amount of air entering the engine. The TPS converts the physical position of the throttle into an electrical signal that is sent to the engine control unit (ECU). This information helps the ECU adjust fuel delivery, ignition timing, and other engine parameters to ensure optimal performance.
Key Functions of a Throttle Position Sensor:
1.Measure Throttle Position: It detects how far the throttle is open (from idle to full throttle).
2.Optimize Fuel Efficiency: The sensor helps the ECU maintain the correct air-fuel ratio for fuel economy.
3.Improve Engine Performance: It assists in delivering smooth acceleration and responsiveness.
4.Aid in Emission Control: By providing accurate throttle data, it helps reduce harmful emissions.
5.Prevent Engine Hesitation: Ensures seamless transitions during acceleration or deceleration.
Where is the throttle position sensor located?

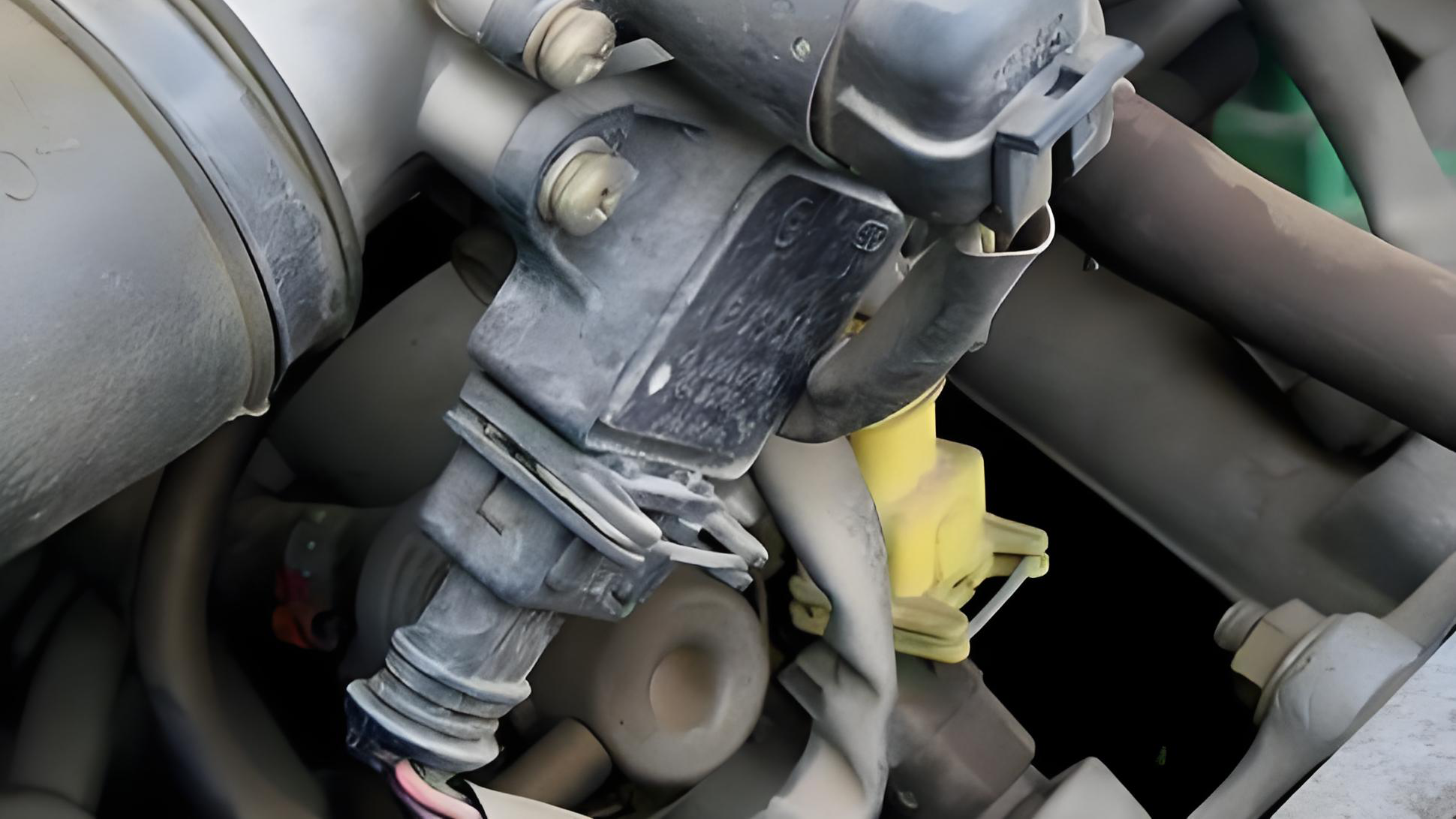

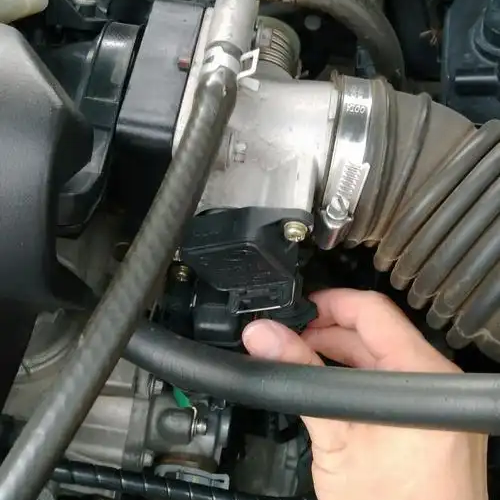

The Throttle Position Sensor (TPS) is typically located on the throttle body, which is part of the intake manifold of the engine. It is directly attached to the throttle valve shaft, allowing it to measure the position of the valve as it opens and closes.
Steps to Locate the TPS:
1.Find the Throttle Body:
Trace the air intake tube that connects the air filter box to the engine. The throttle body is at the end of this tube, near the engine.
2.Look for the Sensor on the Throttle Body:
The TPS is usually mounted on the side of the throttle body. It is a small, rectangular or round sensor with an electrical connector plugged into it.
3.Visual Clues:
Engine Types and Variations:
In older vehicles with a mechanical throttle cable, the TPS is directly linked to the cable.
In modern vehicles with electronic throttle control (drive-by-wire systems), the TPS works alongside other sensors like the accelerator pedal position sensor (APPS).
Symptoms of a Failing Throttle Position Sensor:
How to Reset Throttle Position Sensor?
Resetting the Throttle Position Sensor (TPS) may be necessary after replacement, cleaning, or when troubleshooting certain engine performance issues. The exact method varies depending on your vehicle, but here are the general steps:
Method 1: Manual Reset (No Diagnostic Tool)
For vehicles without advanced diagnostic tools:
1.Turn the Ignition Key On (Engine Off):
2.Press the Accelerator Pedal:
3.Wait for the System to Adjust:
4.Turn Off the Ignition:
5.Start the Engine:
Method 2: Reset via Battery Disconnection
1.Disconnect the Negative Battery Terminal:
Use a wrench to disconnect the negative (-) terminal of the battery and wait for about 5–10 minutes. This clears the ECU memory.
2.Reconnect the Battery:
Reattach the negative terminal securely.
3.Follow Manual Reset Procedure:
After reconnecting the battery, follow the steps in Method 1 to ensure proper TPS relearning.
Method 3: Reset Using a Diagnostic Tool (Recommended)
For vehicles with advanced systems:
Connect an OBD-II Scanner: Plug the OBD-II scanner into the vehicle’s diagnostic port (usually under the dashboard).
Access Throttle Calibration: Navigate to the “Throttle Position Sensor” or “Idle Relearn” option in the scanner menu.
Follow On-Screen Instructions: The scanner will guide you through the reset procedure. It may involve turning the ignition on/off and pressing the accelerator pedal.
Test the System: After the reset, start the engine and check for smooth operation.
When to Reset the TPS?
After replacing the TPS or throttle body.
After cleaning the throttle body.
If experiencing rough idling, hesitation, or throttle lag.
If the symptoms persist after resetting, the TPS or related components may require further diagnosis or replacement.
FAQs
1. What is a throttle position sensor, and why is it important?
A throttle position sensor (TPS) monitors the position of the throttle valve in your engine and sends this data to the ECU. It ensures smooth engine performance, optimal fuel efficiency, and proper air-fuel mixture for acceleration or idling.
2. How do I know if my throttle position sensor is failing?
Common signs of a failing TPS include poor acceleration, rough idling, stalling, unstable engine speeds, or the check engine light turning on. Use a diagnostic tool to confirm TPS-related error codes.
3. Where is the throttle position sensor located in a car?
The TPS is typically mounted on the throttle body, which is near the intake manifold. Look for it on the side of the throttle body connected to the throttle valve shaft.
4. Can I reset the throttle position sensor myself?
Yes, you can reset the TPS manually by following these steps:
Turn the ignition to “ON” (without starting the engine).
Press and release the accelerator pedal slowly a few times.
Turn off the ignition, wait, and restart the engine.
Alternatively, you can use a diagnostic tool for more precise calibration.
5. How often should I clean or maintain the throttle position sensor?
Inspect and clean the throttle body and TPS every 20,000–30,000 miles or as recommended by your vehicle’s manual. Regular cleaning prevents carbon buildup that can affect throttle performance.
6. What happens if I don’t fix a faulty throttle position sensor?
Ignoring a faulty TPS can lead to poor engine performance, reduced fuel efficiency, increased emissions, and even long-term damage to the engine. Replacing or repairing the sensor promptly is essential for your vehicle’s health.
