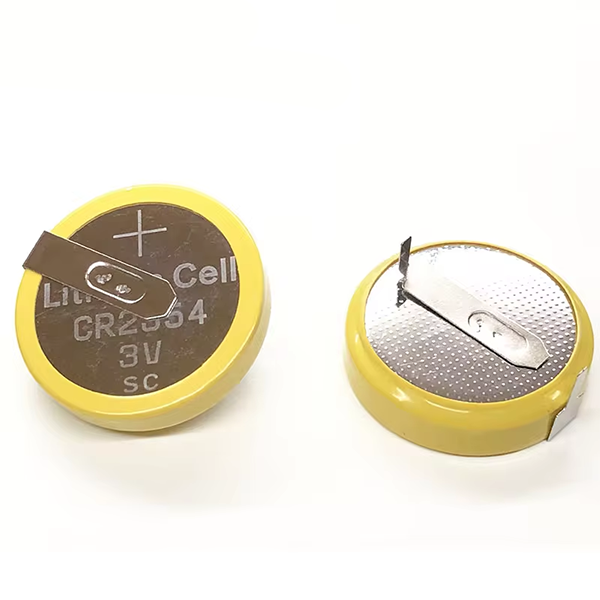

The CR2354 battery is a type of non-rechargeable lithium coin cell or button cell battery characterized by its diameter of 23mm and height of 5.4mm. The battery operates at a nominal voltage of 3.0V and depending on the model, its capacity typically ranges from 500-560mAh.
The battery is known for its low self-discharge rate, between 1% and 3% per year, which contributes to its impressive shelf life of up to 10 years. Coupled with its ability to operate effectively across a broad temperature range (usually -20°C to +60°C), the CR2354 battery finds widespread use in a variety of compact, low-power electronic devices such as digital watches, key fobs, medical devices, and compact remote controls.

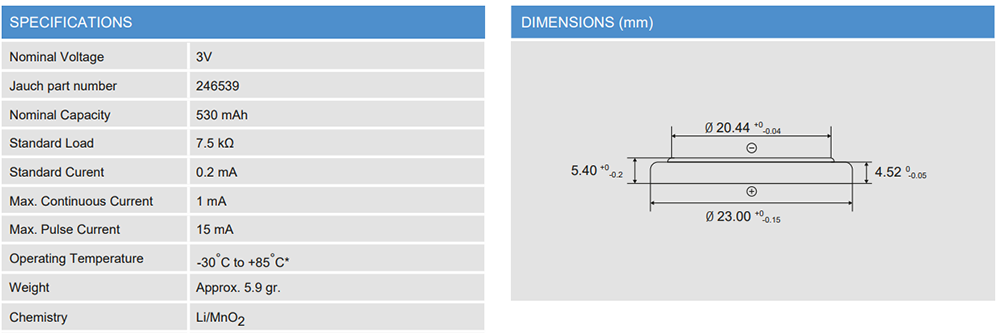

Battery Specifications
CR2354 is a lithium manganese dioxide battery type with a coin-like structure, possessing key specifications depicted below:
1. Battery Chemistry: Primarily made up of Lithium and Manganese Dioxide, which pertains to its excellent electrochemical potential and stability.
2. Physical Dimensions: The denomination 2354 denotes physical dimensions where '23' corresponds to the battery's diameter (23mm) and '54' relates to its height (5.4mm).
3. Electrical Characteristics: The rated voltage of CR2354 is pegged at 3.0V. Its capacity typically lies in the range of 500mAh to 560mAh, the exact figure can vary slightly between different manufacturers.
4. Energy Retention: This battery also exhibits a notably low self-discharge rate – between 1% and 3% yearly, facilitating a potential shelf life that can span up to a decade.
5. Functional Temperature Span: CR2354 is resilient to temperature changes, generally efficient in a broad temperature spectrum of -20°C to +60°C. Certain manufacturers offer variants expandable to -30°C to +85°C.
6. Mass: The mass of this battery is about 6.9g, making it lightweight yet energy-dense.

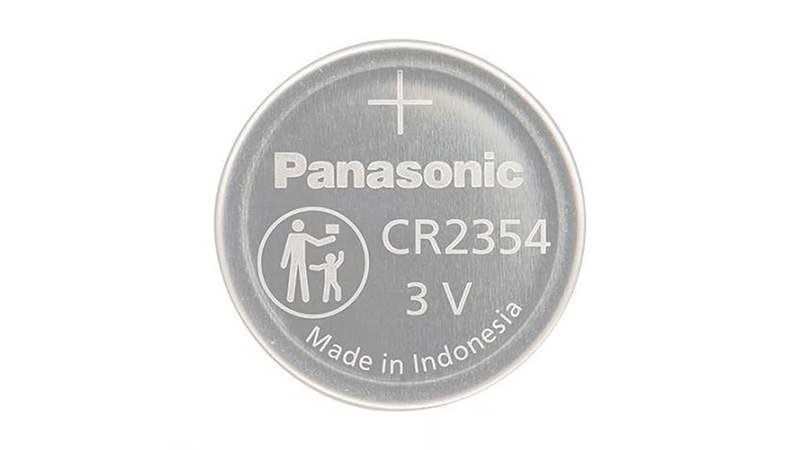

Panasonic CR2354 Battery
Panasonic's CR2354 Battery stands out from many CR2354 batteries due to its good pulse capability, high discharge characteristics, stable voltage level during discharge, etc. The specific parameter information of Panasonic's CR2354 Battery is as follows:
CR2354 Battery Equivalent
The CR2354 battery is a button cell lithium battery that has a diameter of 23mm and a height of 5.4mm. When searching for an equivalent battery to the CR2354, it's necessary to meet the required specifications, such as matching voltage, capacity, or size. Equivalents of the CR2354 include: the BR2354, LiR2354, Energizer ECR2330, Kodak KCR2354, and Duracell DL2354 batteries, among others. But why can these batteries be used as replacements for the CR2354 battery? Let's delve into the specific details of these equivalent batteries.
BR2354 Battery
This is a lithium/carbon monofluoride battery, quite similar to the CR2354 in terms of size, but different in terms of voltage (3V vs 2.8V) and chemistry. It's also characterized by lower self-discharge, resulting in a longer shelf-life.
LiR2354 Battery
This is a lithium-ion rechargeable version with around the same capacity, but different chemistry and voltage (~3.6V) than the nominal 3V of CR2354.
Energizer CR2330 Battery
In some cases, Energizer's CR2330 battery might be used as a substitute. It shares the same chemical composition (lithium/manganese-dioxide) and voltage (3V) with the CR2354 but is slightly smaller and less capacity.
DL2354 Battery
Produced by Duracell, a well-known battery manufacturer, the DL2354 presents the same energy attributes, size, and voltage parameters as found in the CR2354.
ECR2354 Battery
This is an Energizer-made battery, ECR2354, which is comparable to the dimensions, chemistry, and 3.0-volt rating of a CR2354.
KCR2354 Battery
Manufactured by Kodak, this KCR2354 battery also matches with the physical measures, capacity, chemical makeup, and voltage of a CR2354 battery.
Applications
The CR2354 battery, a non-rechargeable lithium coin or button cell, is frequently used in a variety of applications. Its long shelf life, relatively high energy density, and small size make it ideal for several portable electronic devices. Here are some specific applications where the CR2354 battery is commonly used:
Frequently Asked Questions
1. What battery can replace CR2354 battery?
Equivalent batteries that can replace CR2354 batteries include BR2354, LiR2354, Energizer ECR2330, Kodak KCR2354 and Duracell DL2354.
2. How thick is a CR2354 battery?
The thickness or height of a CR2354 button cell battery is 5.4 millimeters.
3. What is the diameter of a CR2354 battery?
The diameter of a CR2354 battery is 23 millimeters.
4. Can CR2032 batteries replace CR2354 batteries?
While both the CR2032 and CR2354 are types of lithium button cell batteries, they have different dimensions and capacities. The CR2032 has a diameter of 20 mm and height of 3.2 mm, whereas the CR2354 has a diameter of 23 mm and height of 5.4 mm. Also, the CR2354 battery has a higher capacity than the CR2032. Therefore, while the voltage is the same (3V), a CR2032 cannot be used as a replacement for a CR2354 since it is smaller and has a lower capacity.
