A flow sensor is a type of instrument used to detect and measure the flow parameters of medium such as liquids and gases, and convert them into other forms of signals for output. Flow sensors are diverse and widely used. This article will provide you with a detailed introduction to the advantages and disadvantages of flow sensors, their application scenarios, and the working principles of different types of flow sensors.

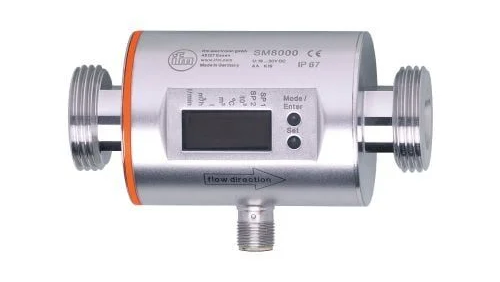

What is Flow Sensor?
A flow sensor, often referred to as a flow meter, is an electronic device designed to measure or regulate the flow rate of liquids and gases within pipes and tubes. It functions by leveraging both mechanical and electrical subsystems to detect changes in a fluid's physical properties and then calculates its flow rate accordingly. These sensors are typically linked to gauges for a visual representation of their measurements, but they can also be connected to digital interfaces for advanced monitoring and control.
![/uploadimg/2024/7/Flow Sensor.jpg /uploadimg/2024/7/Flow Sensor.jpg](/uploadimg/2024/7/Flow Sensor.jpg)
Flow sensors fall into two primary categories - contact and non-contact sensors. Contact flow sensors come in direct contact with the fluid and are ideal for applications where there is no risk of clogging. Non-contact flow sensors do not have any direct interaction with the fluid, making them suitable for scenarios where the fluid (commonly in food products) might be contaminated or physically altered by contact with moving parts. These sensors are indispensable components heavily utilized across various sectors, including HVAC systems, medical devices, chemical industries, and numerous other manufacturing systems.
Working principle of flow sensor
Flow sensors work by employing various principles to measure the quality of a fluid or gas passing through them. The particular principle used depends on the type of flow sensor. Here are a few commonly used flow sensor types and their working principles:
Differential Pressure Flow Sensors
These sensors are part of a class of flow meters known as Pressure-Based Flow meters. The basic principle involved is that the pressure drop across the meter is proportional to the square of the flow rate. By measuring the differential pressure produced by orifice plate restriction, the flow rate can be calculated. The pressure difference (high pressure before the orifice, low pressure after) is often measured with a diaphragm differential pressure sensor. It is a robust technology often used for water, wastewater, HVAC, and power generation industry applications.

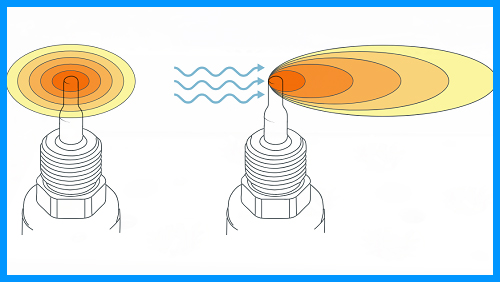

Thermal Flow Sensors
Hot wire anemometers or thermal flow sensors use the cooling effect of a flow to determine the mass flow, or the actual volumetric flow. Based on the amount of heat loss from the sensor, which increases with higher flow rate, they can accurately calculate the flow rate of gases. These are often used in HVAC and clinical applications.
![Thermal Flow Sensors Thermal Flow Sensors](/uploadimg/2024/7/Thermal Flow Sensors.jpg)
Magnetic Flow Sensors (Magmeters)
Flowing conductive liquid through a magnetic field induces a voltage according to Faraday's law. This voltage is proportional to the flow rate, making it possible to derive speed and thus flow. They’re commonly used in wastewater treatment, food and drink, and industrial process applications. They require the liquid to be conductive.

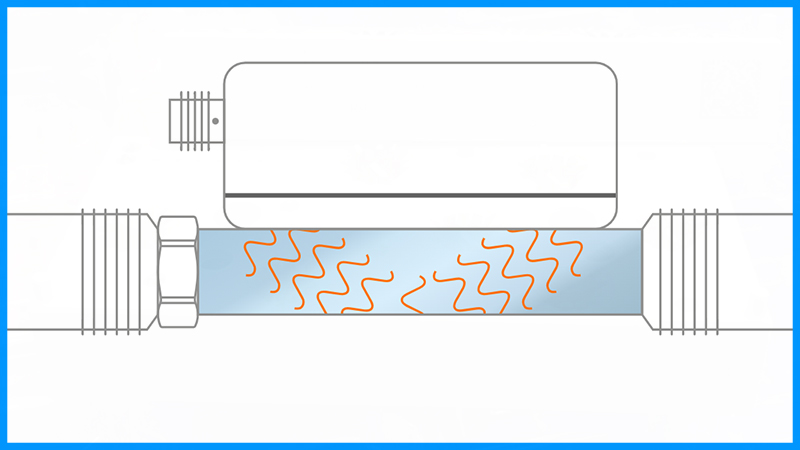

Ultrasonic Flow Sensors
This technology uses sound waves that are sent through the medium and are affected by the movement of the fluid. By measuring the transmitted time of the ultrasonic signal both downstream and upstream, the sensor can calculate the velocity and thereby the flow rate of the fluid. These are commonly used for water flow measurement and flow measurement of natural gas.
![Ultrasonic Flow Sensors Ultrasonic Flow Sensors](/uploadimg/2024/7/Ultrasonic Flow Sensors.jpg)
Turbine Flow Sensors
As the fluid moves through the meter, it causes a rotor to turn at a speed that is proportional to the flow rate. The rotations are typically detected by a hall effect sensor or a coil. These are known for their accuracy and are often used in hydraulic, pharmaceutical, and energy industries.

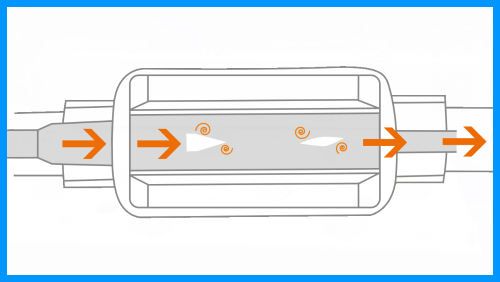

Vortex Flow Sensors
Flow passing a bluff in a storm will generate vortices downstream from the bluff. By detecting these vortices, the sensor can calculate flow rate as the frequency of vortex shedding is proportional to flow velocity. Vortex flow sensors are used in numerous applications, including Steam Flow, Chemical Injection, and HVAC. Their operation is largely unaffected by changes in process conditions.
![Vortex Flow Sensors Vortex Flow Sensors](/uploadimg/2024/7/Vortex Flow Sensors.jpg)
Application of Flow Sensor
Flow sensors are used in different industries. Their main function is to monitor, regulate or measure fluid flow. Below we will introduce its application scenarios in detail.
Healthcare and Biotechnology: In the healthcare sector, flow sensors play a pivotal role. For instance, they are deployed in medical ventilators to regulate the flow of air and other gases, providing critically ill patients with the life-saving oxygen they need. They are also used in dialysis machines to ensure the fluid transfer rate is correctly managed. Moreover, in biotechnological applications, flow sensors measure the rate of nutrient delivery to biological reactors or bioreactors.
Heating, Ventilation, and Air Conditioning (HVAC): Maintaining comfort levels in buildings requires efficient monitoring and control of air flow, and it's here that flow sensors come into play. They help control the volume of air flowing into different parts of the building, maintaining a balance in temperature and air quality.
Automotive Industry: Car engines are complex systems, requiring a fine balance of air and fuel to operate effectively. Flow sensors, such as mass air flow (MAF) sensors, measure the amount of air entering the engine, ensuring the correct air-fuel mixture for optimal engine performance and fuel efficiency.
Industrial Processes and Manufacturing: Flow sensors are vital for controlling process variables in various industries. They analyze flow rates in pipelines, ensuring the correct volume of fluid or gas is delivered at the right time. This ranges from managing the flow of ingredients at a beverage production line to controlling the heavy oils flow at a petroleum processing plant.
Environment and Water Management: Monitoring water usage and controlling wastewater treatment is vital for efficient water resources management. Flow sensors in these situations help track water usage, detect leaks, and manage the treatment of wastewater, enabling more sustainable water practices.
Agricultural Practices: Modern farming practices have turned to sophisticated irrigation methods for better crop yields. Flow sensors are used to monitor and control water flow in these irrigation systems, enabling efficient water usage and less waste.
Advantages of Flow Sensors
Flow sensors offer advantages such as precision and accuracy in measuring fluid or gas flow rates, empowering industries to increase efficiency and resource management. Their versatility allows application across a plethora of sectors, such as industrial, environmental, medical, and HVAC settings. The real-time data they provide supports automated control of operations, minimizing manual interventions and encouraging constant output. Moreover, by efficiently monitoring and controlling the consumption of fluids and gases, these sensors can reduce waste and contribute to more sustainable business practices.
Disadvantages of Flow Sensors
Despite their benefits, flow sensors have certain drawbacks. Their effectiveness can be significantly impacted by their placement, with improper installation leading to inaccuracies and potential inefficiencies. Depending on the types of media they monitor, they may require regular maintenance or cleaning, and certain substances could lead to erosion or contamination over time. Some flow sensors can be expensive, creating barriers for smaller businesses or operations on a tight budget. Furthermore, while designed to withstand a variety of conditions, their performance and reliability can degrade when exposed to continuous extreme temperatures, pressures, or corrosive fluids.
FAQ
1. What is the use of a flow sensor?
A flow sensor is a device that is used to measure the quantity of liquid or gas that is moving through it. This measurement can be expressed in a variety of ways such as liters per minute, gallons per minute, cubic meters per hour etc. Flow sensors are primarily used in industries such as HVAC, water treatment, energy and oil and gas for tasks varying from regulating system control, managing flow rate to preventing damage and ensuring safety.
2. What are the commonly used flow sensors?
The most commonly used flow sensors include Differential Pressure Flow Sensors, Velocity Flow Sensors, Positive Displacement Flow Sensors, Mass Flow Sensors and Open Channel Flow Sensors. These sensors are based on different measurement principles such as Bernoulli’s Equation, Faraday's Law of electromagnetic induction, ultrasonic waves and heat transfer, among others. They are used in different applications and offer varying levels of accuracy, response and repeatability.
3. What is a flow sensor in a medical device?
A voltage follower prevents signal loading by presenting a high input impedance to the source circuit and a low output impedance to the load. This configuration minimizes the current drawn from the source, thereby not affecting the source voltage, and allows the follower to drive the load effectively without significant voltage drop.
4. What is the difference between a flow sensor and a flow meter?
While they are often used interchangeably in the industry, a flow sensor and a flow meter are two different components of the flow measurement process. A flow sensor, as mentioned earlier, measures the quantity of liquid or gas that is flowing in a pipe or duct. It provides a raw signal corresponding to this flow rate. On the other hand, a flow meter most commonly involves a display or an interpretative device that not only houses the flow sensor, but also processes the raw signal from the sensor and converts it into understandable units of measurement. In some cases, it may also incorporate additional features like data logging and remote transmission.
