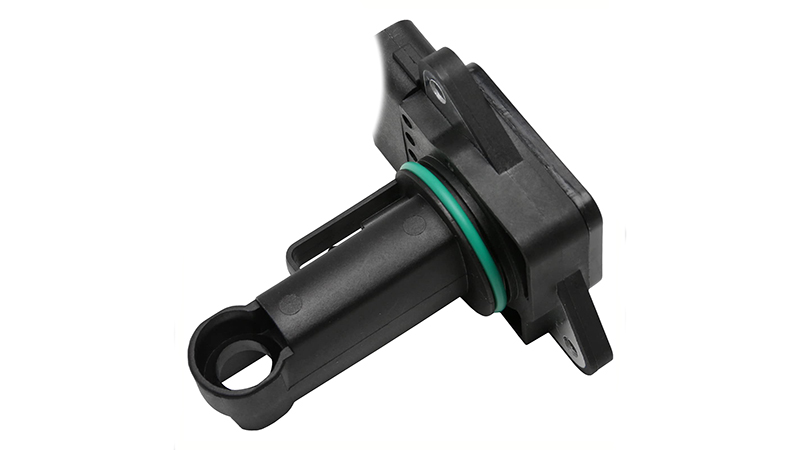

What is Air flow sensor?
An airflow sensor, also known as an air mass meter or air mass sensor, is a device used to measure the amount of air entering an internal combustion engine. This information is necessary for the engine control unit (ECU) to balance and deliver the correct fuel mass to the engine. By delivering the right amount of fuel, the ECU can enhance engine efficiency, reduce emissions, and ensure optimal engine performance.
![Air flow sensor Air flow sensor](/uploadimg/2024/7/Air flow sensor.jpg)
The airflow sensor is usually located between the air filter and the engine throttle body. Many airflow sensors heat a wire element or film and then measure the electrical resistance. As more air flows over the element, it cools down, reducing the resistance. This change in resistance can then be measured to estimate the volume of air entering the engine.
Common types of airflow sensors used in automotive applications include:
Hot-wire air mass sensors: They heat a thin platinum wire and measure the electrical current that's needed to keep the wire at a constant temperature while air flows over it.
Film air mass sensors: They function similarly to the hot-wire sensors but use a heated thin film resistor in place of a wire.
Vane air flow (VAF) sensors: They consist of a flap/door that's pushed by incoming air; the door's movement changes a resistance value which is interpreted as air volume.
Karman Vortex sensors: They make use of a phenomenon wherein a fluid or gas passing by a blunt body will generate a repeating pattern of swirling vortices known as a Kármán vortex street. The frequency of these vortices is measured by the sensor to calculate the flow rate.

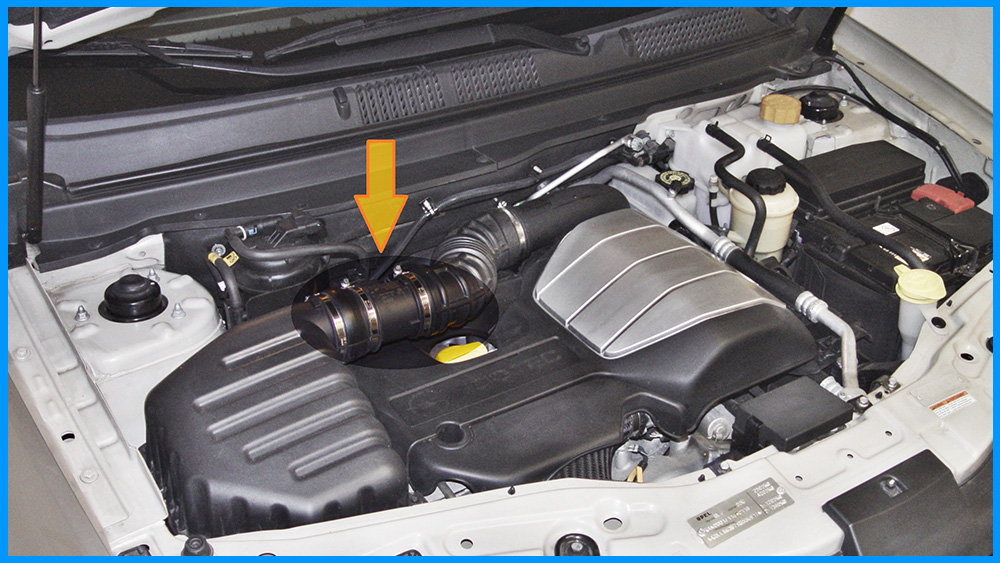

Air Flow Sensor Location
The mass air flow sensor is typically installed between the air filter and the throttle body because it needs to directly measure the air flow entering the engine. This placement ensures that the sensor can accurately capture the air flow information and convert it into an electrical signal to send to the Engine Control Unit (ECU), serving as one of the basic signals for controlling fuel injection. Additionally, the installation position of the air flow sensor also takes into account coordination with other parts of the intake system (such as the intake manifold, throttle position sensor, etc.) to ensure the efficiency and accuracy of the entire system.
![Air flow sensor location Air flow sensor location](/uploadimg/2024/7/Air flow sensor location.jpg)
How to Reset a Mass Air Flow Sensor?
Resetting a mass air flow (MAF) sensor typically involves either cleaning the sensor to restore its accuracy or resetting the vehicle's engine control unit (ECU) to clear any error codes related to the MAF sensor. Here's a step-by-step guide on how to reset a MAF sensor:
Cleaning the MAF Sensor
Often, simply cleaning the MAF sensor can resolve issues related to dirty sensor elements, which can skew the readings.
Locate the MAF Sensor: It's usually found in the air duct between the air filter and the throttle body.
Remove the Sensor: Carefully disconnect the electrical connector and remove any screws or clamps holding the sensor in place. Handle the sensor delicately to avoid damaging it.
Clean the Sensor: Use a cleaner specifically designed for MAF sensors. Spray the cleaner onto the sensor element without touching it with any objects, including the cleaning straw.
Dry and Reinstall: Allow the sensor to dry completely, then reinstall it in the reverse order of removal. Reconnect the electrical connector securely.
Resetting the ECU
If the MAF sensor was extremely dirty or if you suspect the sensor readings have affected the vehicle's performance, you might want to reset the ECU.
Disconnect the Battery: Turn off the vehicle. Disconnect the battery by removing the negative battery cable. Wait for about 15 minutes.
Reconnect the Battery: Reconnect the negative battery cable. This action can help to reset the ECU’s memory and clear any error codes.
Start the Vehicle: Start the engine and let it idle for a few minutes. This allows the ECU to recalibrate and adjust to the clean MAF sensor.
Additional Steps
Check for Error Codes: If you have access to an OBD-II scanner, connect it to your vehicle to check for any remaining error codes related to the MAF sensor. Clear any codes if necessary.
Test Drive: Take the vehicle for a test drive to ensure that it is operating smoothly and that the issue has been resolved.
Resetting the MAF sensor by cleaning it and resetting the ECU can often resolve issues without needing to replace the sensor. However, if problems persist after these steps, the sensor itself might be faulty and require replacement.
What to do After Replacing Mass Air Flow Sensor?
After replacing the Mass Air Flow (MAF) sensor in your vehicle, you'll likely need to perform a few steps to ensure that everything is functioning correctly.
1. Reset the Engine Control Unit (ECU): Disconnect the negative terminal of the battery for a few minutes, then reconnect it. This step resets the car's ECU and allows it to recalibrate with the new MAF sensor.
2. Clear Error Codes: Using an OBD-II scanner, clear any error codes that might still be saved in the ECU from the faulty MAF sensor. Most modern vehicles have an onboard diagnostic system that allows you to read and clear error codes related to the vehicle's operation.
3. Idle Relearn Procedure: Start your engine and allow it to reach normal operating temperature. Then let it idle for about 10-15 minutes so the ECU can relearn the idle conditions with the new MAF sensor. During this time, do not operate the throttle. Some vehicles might require a specific idle relearn procedure which can be found in the vehicle's service manual.
4. Test Drive: Once the ECU has been reset and the error codes have been cleared, take your vehicle out for a short test drive. Drive under various conditions (city traffic, highway speed, stop-and-go, etc.) to check the overall performance. Keep an eye on power delivery, fuel economy, and whether the check engine light remains off.
5. Monitor Performance and Fuel Economy: Over the next few days, monitor your vehicle's performance and fuel economy. If these improve, it's likely the MAF sensor was the issue and has been fixed.
6. Check Engine Light: If the check engine light comes back on or if performance issues still exist, there may be other issues going on that also need attention. In this case, a more in-depth diagnostic may be required.
Remember, it takes some time for the ECU to fully adjust to the new MAF sensor. If your vehicle still seems slightly off, it may be worthwhile to have patience and let the ECU adjust. If problems persist, it could be due to other related components such as the oxygen sensor, throttle body, or fuel injectors. In that case, seeking help from a professional mechanic is recommended.
FAQ
1. What happens when the MAF sensor goes out?
When the Mass Air Flow (MAF) sensor goes out, it can lead to a range of engine problems. You may notice poor fuel economy, reduced engine performance, and rough idling. The vehicle might also stall, especially when trying to accelerate from standstill. In some cases, the check engine light might come on too. This is because the MAF sensor provides vital data to your car's computer about the volume and density of air entering the engine. If the sensor is not working, the engine may not receive the right amount of fuel, resulting in these issues.
2.Can I drive with a bad mass air flow sensor?
While you technically can drive with a bad MAF sensor, it's not recommended due to the potential for damage to your engine. The sensor informs the car's computer how much fuel to inject into the engine based on the amount of air coming through the intake. If the MAF sensor isn't working correctly, the computer might inject too much or too little fuel, leading to imbalances that can cause poor performance, reduced fuel economy, or potentially serious engine damage over time.
3. How much does a mass air flow sensor replacement cost?
Replacing a mass air flow sensor typically costs between $50 and $400 for parts, with labor costs adding about $50 to $100. However, the exact cost can vary depending on the make and model of your vehicle, with nicer cars costing more.
