| Type: | Digital Media System-on-Chip (DMSoC) |
| Interface: | EBI/EMI, Ethernet, I2C, McBSP, SPI, UART, USB |
| Clock Rate: | 432MHz |
| Non-Volatile Memory: | ROM (16 kB) |
| On-Chip RAM: | 56kB |
| Voltage - I/O: | 1.8V, 3.3V |
| Voltage - Core: | 1.35V |
| Operating Temperature: | 0～C ~ 85～C (TC) |
| Mounting Type: | Surface Mount |
| Package / Case: | 338-LFBGA |
| Supplier Device Package: | 338-NFBGA (13x13) |
The TMS320DM368ZCE by Texas Instruments is an innovative DaVinci video processor designed to make multi-format video delivery up to 1080p H.264 at 30fps (encode and decode) seamless and worry-free. Specially crafted for digital video designs, this unit efficiently handles tasks linked to video format support, network bandwidth, system storage capacity, and cost efficiency. Operating at 432 MHz, it uses the ARM926EJ-S core, which is pin-to-pin compatible with the DM365 processors. The provision of production-qualified H.264BP/MP/HP, MPEG-4, MPEG-2, MJPEG, and VC1/WM9 codecs makes this device widely adaptable, fulfilling varied customer needs for video codecs.
Remarkably, the TMS320DM368ZCE sustains HD video processing at 1080p 30fps H.264, with the video codecs running on independent coprocessors (HDVICP and MCP). This strategy offloads compression tasks from the main ARM core, thus optimizing performance for multi-channel, multi-stream, and multi-format applications. The inclusion of a suite of peripherals enriches the device's functionality, facilitating seamless interfacing with external devices needed for video applications. The image sensor interface is adaptable enough to support CCD, CMOS, and other interfaces such as BT.656, BT1120. The high degree of integration with HD display support, built-in 10-bit HD analog video D-A converters (DACs), DDR2/mDDR, ethernet MAC, USB 2.0, integrated audio, host port interface (HPI), analog-to-digital converter, and numerous other features significantly reduced overall system costs and circuit board space.

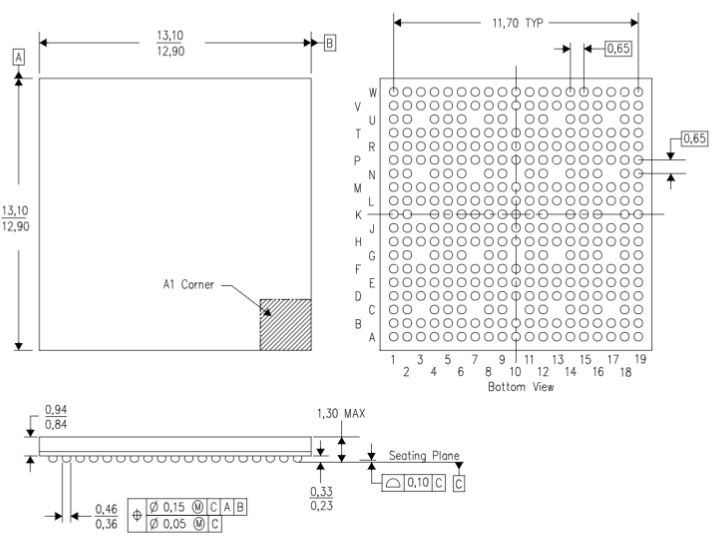

Texas Instruments TMS320DM368ZCE Package Dimensions:
Nantian Electronics, a professional distributor of Texas Instruments, provides sufficient TMS320DM368ZCE stock and offers downloads of parameters, datasheet PDFs, and pin diagram instructions.
