The PESD1IVN27-AX, manufactured by Nexperia, is an Electrostatic Discharge (ESD) protection device specifically designed to safeguard automotive In-vehicle network bus lines from damage caused by ESD and other transient events. This device is housed in a compact SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package, making it suitable for space-constrained applications.

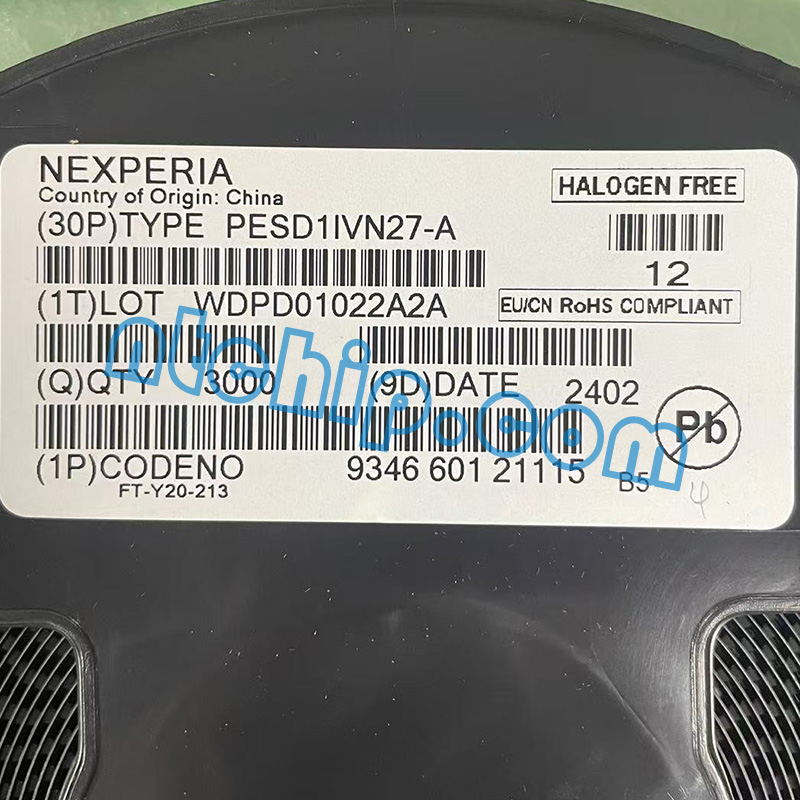

Nexperia PESD1IVN27-AX Original Reel Label

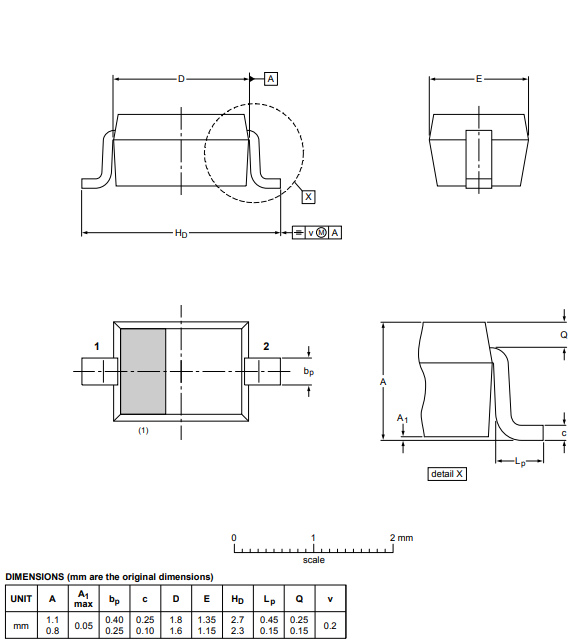

Nexperia PESD1IVN27-AX Package Dimensions:
The PESD1IVN27-AX boasts a range of features that ensure robust protection and reliable performance. It has a reverse stand-off voltage (VRWM) of 27 V and a low clamping voltage (VCL) of 36 V at a peak pulse current (IPP) of 3 A. The device offers ESD protection of up to 30 kV, meeting both IEC 61000-4-2 and ISO 10605 standards. It is also designed to withstand ISO 7637-3 pulses, with a negative pulse (Pulse a) of -150 V and a positive pulse (Pulse b) of +100 V. With an ultra-low leakage current (IRM) of less than 1 nA, the PESD1IVN27-AX ensures minimal power loss. Furthermore, this device is qualified according to the AEC-Q101 standard, denoting its automotive grade quality.

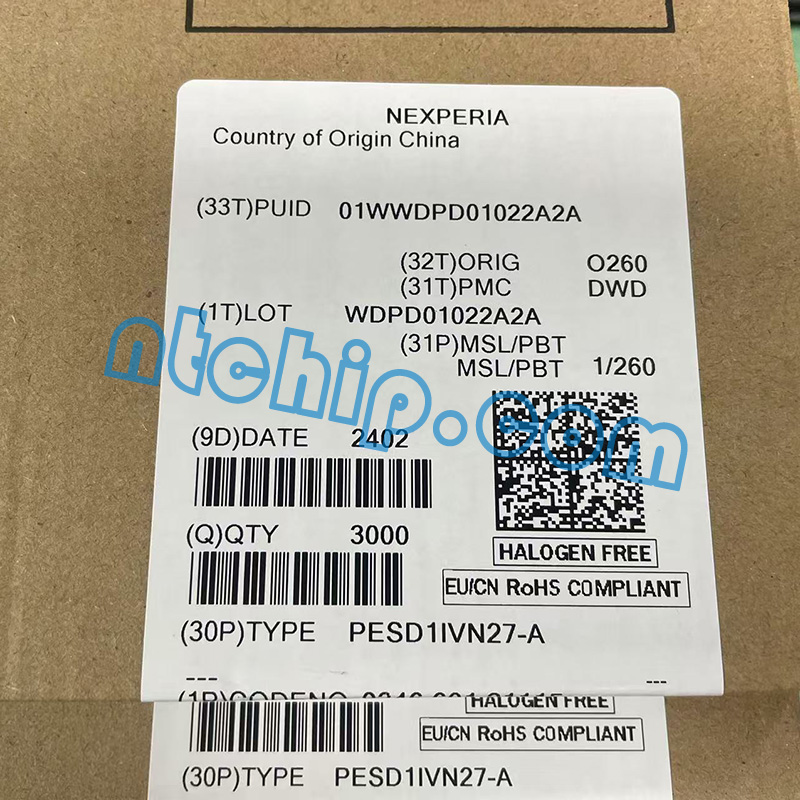

Nexperia PESD1IVN27-AX Package Genuine Label
Nantian Electronics, a professional Nexperia distributor, has a substantial stock of PESD1IVN27-AX devices. They also provide comprehensive support, including access to PESD1IVN27-AX parameters, datasheets, and pin diagram instructions for download, ensuring you have all the information needed to effectively incorporate this device into your designs.
