Introduction to CR1616 3V Battery
The CR1616 is a type of coin cell battery commonly used in small electronic devices. It is a 3-volt lithium battery, often utilized in watches, calculators, and certain types of medical devices like digital thermometers. The "CR" in its name indicates that it is a lithium manganese dioxide battery, which is non-rechargeable. The numbers "1616" refer to the dimensions of the battery: 16 mm in diameter and 1.6 mm in thickness.

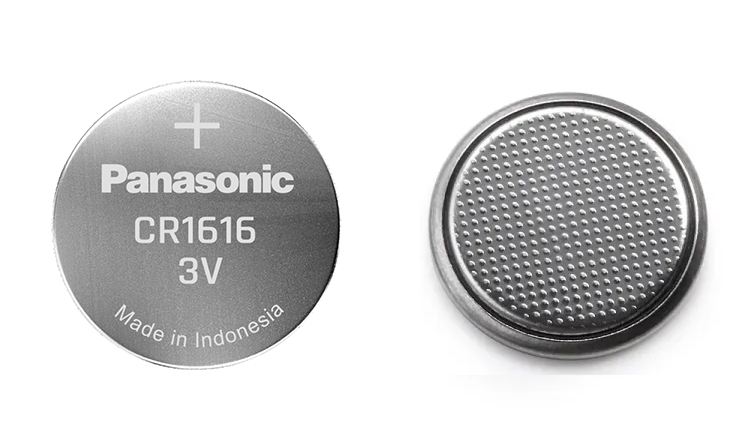

![CR1616 Battery CR1616 Battery](/uploadimg/2024/5/CR1616 Battery.jpg)
CR1616 Battery
CR1616 battery Dimension
The CR1616 battery is 16 mm in diameter and 1.6 mm thick. Below are his size details:

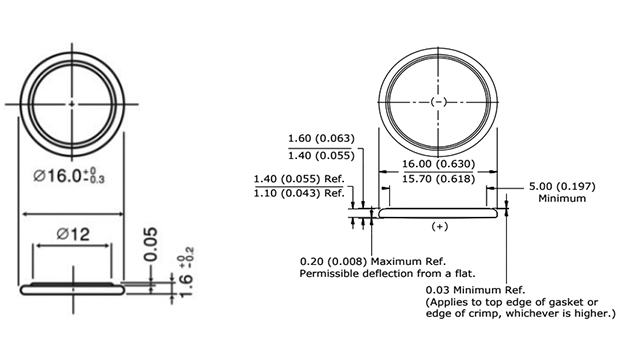

![CR1616 Dimension CR1616 Dimension](/uploadimg/2024/5/CR1616 Dimension.jpg)
CR1616 Dimension
CR1616 Parameters
The detailed parameter information of cr1616 3 volt battery is shown in the table below:

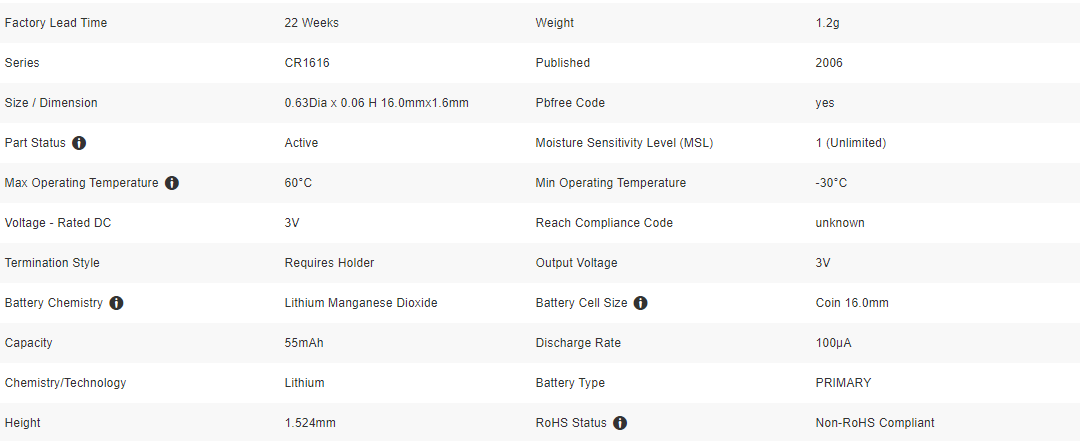

![CR1616 parameter CR1616 parameter](/uploadimg/2024/5/CR1616 parameter.jpg)
CR1616 Parameter Table
Applications
Common application scenarios are not limited to watches, calculators, remote controls, medical equipment, LED lights and children's toys, etc.
CR1616 is often used in some children's toys. When using it, be sure to prevent children from eating the battery.
CR1616 Battery Equivalent
CR1616 battery is a small coin-shaped lithium battery. The equivalent batteries of CR1616 include: BR1616, LM1616, DL1616, ECR1616, DL 1616B, CR1616-1W, KCR1616, 5021LC, 280-209, L11 and L28 batteries. Here's a detailed introduction to the equivalent batteries of CR1616, which can be useful when you need a replacement but the original model isn't available:
DL1616

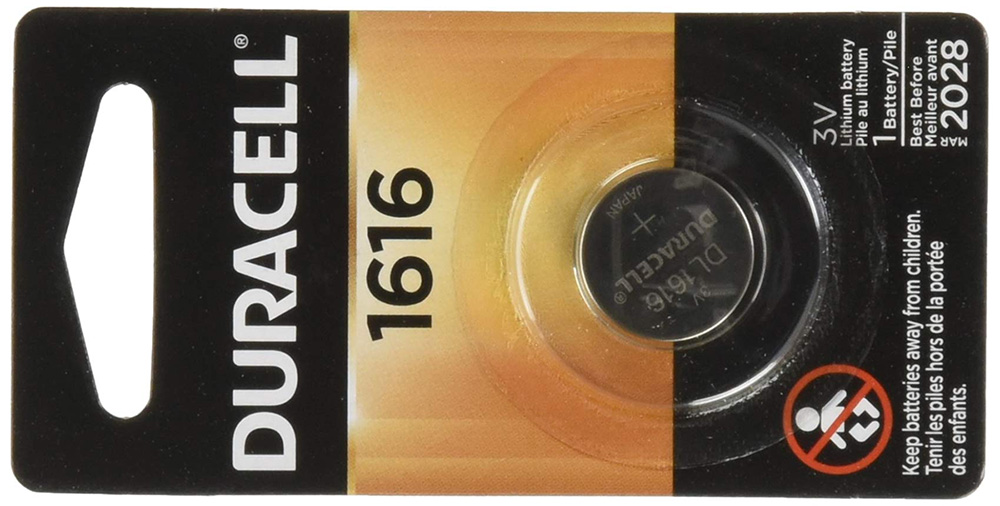

![Duracell DL1616 Duracell DL1616](/uploadimg/2024/5/Duracell DL1616.jpg)
Duracell DL1616
Manufacturer: Duracell
Voltage: 3V
Chemistry: Lithium
Applications: DL1616 and CR1616 batteries are equivalent to each other, just named differently. DL1616 is used in devices such as calculators and car remote controls. In most devices, it is interchangeable with CR1616.
ECR1616
Manufacturer: Energizer
Voltage: 3V
Chemistry: Lithium
Applications: The ECR1616 and CR1616 may look different depending on the brand, but they are interchangeable in terms of physical size and electrical characteristics. Commonly found in electronic devices that require a 3V lithium battery. It is designed to provide long-lasting power for various electronic devices.
BR1616
Manufacturer: Panasonic
Voltage: 3V
Chemistry: Lithium
Applications: The BR1616 battery typically uses a lithium carbon fluoride chemistry and is denoted by the "BR" prefix. It has a nominal voltage of 2.8 volts, which is slightly lower than the CR1616. Both batteries typically have the same physical dimensions. Since the BR1616 has a slightly lower voltage, it is specifically used in devices that require this specific voltage level for optimal performance.
280-209
DL 1616B
CR1616-1W
LM1616
KCR1616
5021LC
Manufacturer: Generic or varies
Voltage: 3V
Chemistry: Lithium
Applications: Corresponds to similar 3V lithium batteries, used in a variety of electronic devices.
L11 and L28
CR1616 Manufacturer
Energizer CR1616

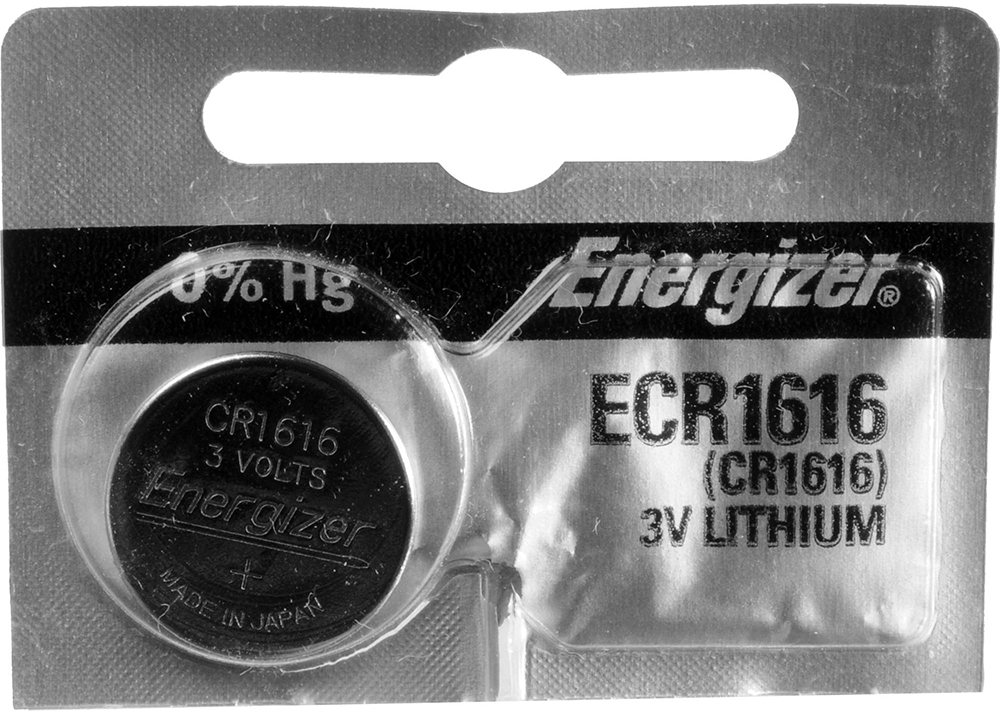

![Energizer ECR1616 Energizer ECR1616](/uploadimg/2024/5/ECR1616.jpg)
Energizer 3V Lithium ECR1616 Battery
Energizer offers ECR1616, which is equivalent to CR1616 and is known for its long life and reliability over a wide temperature range.
Duracell CR1616
Duracell manufactures the DL1616, a direct equivalent to the CR1616, for similar applications.
Sony CR1616
Sony offers a high-quality lithium coin cell battery that is comparable in size and performance to the CR1616.
Maxell CR1616
Maxell is known for making reliable coin cell batteries, including those that meet the CR1616 specification.
CR1616 Datasheet
Nantian Electronics provides datasheets of different brands of CR1616 batteries for download, to help you choose CR1616 batteries from different manufacturers.
FAQ
1. What battery is compatible with CR1616?
Equivalent batteries to CR1616 include: BR1616, DL1616, LM1616, ECR1616, DL 1616B, CR1616-1W, KCR1616, 5021LC, 280-209, L11 and L28 batteries, etc.
2. Can I use CR1632 instead of CR1616?
No, it is not advisable to use a CR1632 battery in place of a CR1616. Although both are 3-volt batteries, the CR1632 is thicker (3.2 mm compared to 1.6 mm for the CR1616), which can lead to issues with fitting and contact in devices designed for the thinner CR1616.
3. Can I replace a CR1616 with a CR1620 battery?
Replacing a CR1616 with a CR1620 is not recommended. Similar to the CR1632, the CR1620 is thicker (2.0 mm) than the CR1616 (1.6 mm). This difference in size can prevent the battery from fitting properly in the compartment designed for a CR1616, potentially causing issues with device functionality or damage.
4. How long do CR1616 batteries last?
CR1616 batteries can be stored for more than 10 years when not in use. In low-power devices, such as watches and calculators, you can expect several years of use. In devices that require more power or are used more frequently, such as some medical devices or fitness trackers, the battery may need to be replaced more often, perhaps within a year or two.
