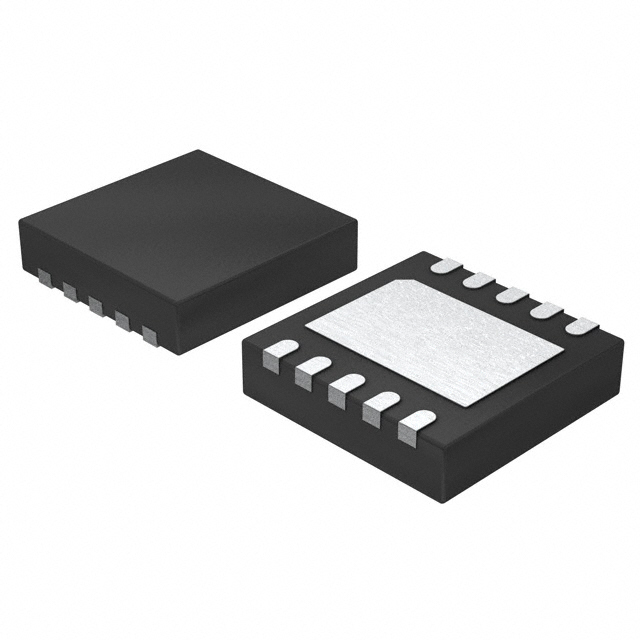

Image shown is a representation only. Exact specifications should be obtain- ed from the product data sheet.

Microchip Technology MIC2214-SMBML TR

Manufacturer Part Number : MIC2214-SMBML TR
Manufacturer : Microchip Technology
Description : IC REG LINEAR 3.3V/2.8V 10MLF
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Datasheet : MIC2214-SMBML TR.PDF MIC2214-SMBML TR PDF
EDA / CAD Models : MIC2214-SMBML TR by SnapEDA
Quantity:
1 152 7602955 mic2214.pdf Microchip-Technology/MIC2214-SMBML-TR 7602955
Output Configuration:Positive
Output Type:Fixed
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):3.3V, 2.8V
Voltage - Output (Max):-
Voltage Dropout (Max):0.25V @ 150mA, 0.42V @ 300mA
Current - Output:150mA, 300mA
PSRR:60dB ~ 40dB (1KHz ~ 20kHz)
Control Features:Enable, Power On Reset
Protection Features:Over Current, Over Temperature
Operating Temperature:-40~C ~ 125~C
Mounting Type:Surface Mount
Package / Case:10-VFDFN Exposed Pad, 10-MLF?
Supplier Device Package:10-MLF? (3x3)

Request for Quotation

Technical Parameters of MIC2214-SMBML TR

Output Configuration:Positive
Output Type:Fixed
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):3.3V, 2.8V
Voltage - Output (Max):-
Voltage Dropout (Max):0.25V @ 150mA, 0.42V @ 300mA
Current - Output:150mA, 300mA
PSRR:60dB ~ 40dB (1KHz ~ 20kHz)
Control Features:Enable, Power On Reset
Protection Features:Over Current, Over Temperature
Operating Temperature:-40~C ~ 125~C
Mounting Type:Surface Mount
Package / Case:10-VFDFN Exposed Pad, 10-MLF?
Supplier Device Package:10-MLF? (3x3)

Product Details

We can supply Microchip Technology part# MIC2214-SMBML TR, use the request quote form to request MIC2214-SMBML TR pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MIC2214-SMBML TR. The price and lead time for MIC2214-SMBML TR depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# MIC2214-SMBML TR. We look forward to doing business with you.
