The AH202-F, a product of TRIQUINT, is a high-performance amplifier designed to operate across a wide frequency range from 30 MHz to 2200 MHz. This broad spectrum of operation makes it a versatile choice for various applications, including mobile infrastructure, CATV/DBS, VHF/UHF broadband applications, and even defense and homeland security systems. It offers a significant gain of 17 dB at 900 MHz, a power output of +30 dBm at 1 dB gain compression (P1dB), and a high third-order intercept point (IP3) of +47 dBm, indicating its ability to handle high power levels without distortion.

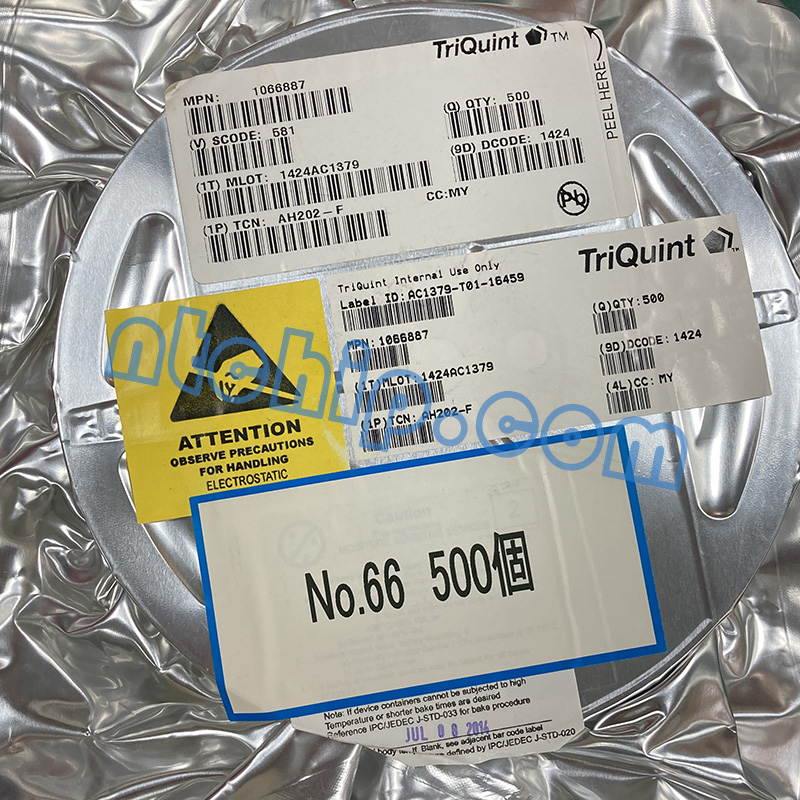

TRIQUINT AH202-F Package Original Label

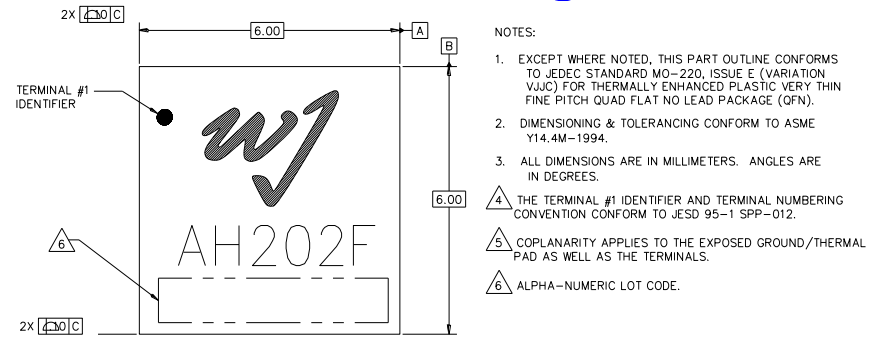

TRIQUINT AH202-F Part Outline Drawing:
The AH202-F comes in a 6x6mm Quad Flat No-leads (QFN) surface-mount technology (SMT) package, making it compact and easy to integrate into various electronic devices. It's also internally matched, which simplifies design and implementation. Furthermore, it operates on a single positive supply, enhancing its efficiency. The AH202-F is lead-free and RoHS-compliant, adhering to regulations for environmental safety.

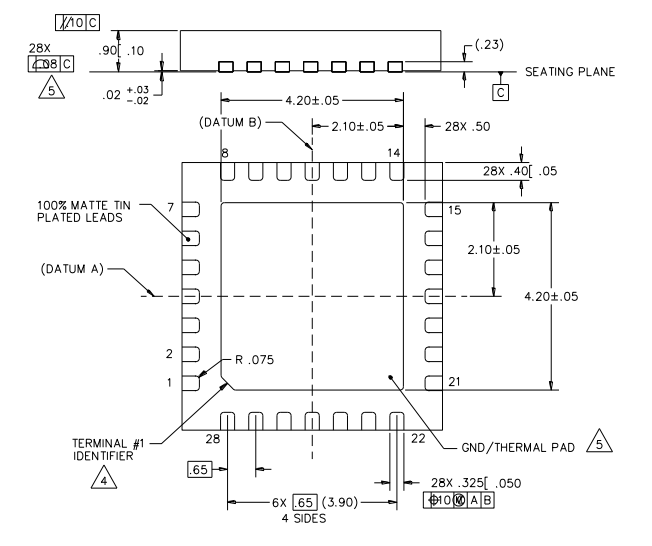

TRIQUINT AH202-F Package Dimensions:
Nantian Electronics, a professional distributor of TRIQUINT products, maintains a large stock of the AH202-F. They also provide comprehensive support materials, including the AH202-F datasheet PDF and pin diagram instructions for download, ensuring customers have access to all the necessary information for effective use of the product.
