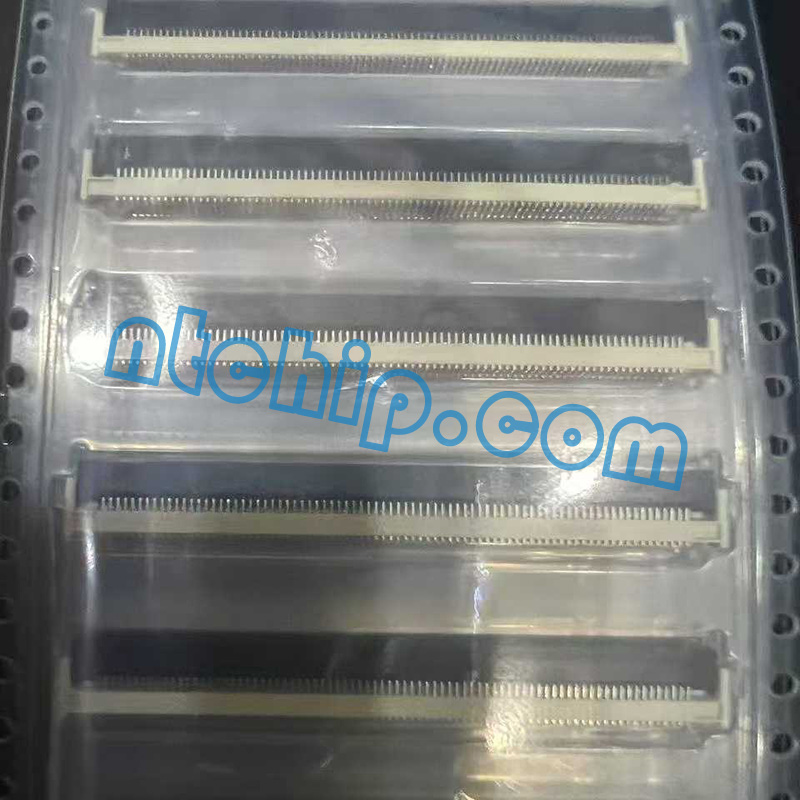

The Molex 505110-8091 connector is designed to offer exceptional ease of use and reliability in electronic device assembly. This innovative connector features a unique contact design that includes two lower contacts per circuit, enhancing connection stability and signal integrity. It also incorporates a zero insertion force mechanism which simplifies the process of cable insertion, reducing the risk of damage during assembly and ensuring a clean mating interface. The connector's cable ear-tab locking feature provides high retention force, ensuring that cables stay securely in place even in environments subject to vibration or movement.
Furthermore, the Molex 505110-8091 is versatile, accommodating a wide range of circuit sizes from 4 to 80, which offers significant design flexibility for various applications. The housing includes a vacuum pick-and-place area, streamlining the assembly process on printed circuit boards and leading to cost savings by eliminating the need for separate pick-and-place tape. This feature not only facilitates easier board assembly but also contributes to overall manufacturing efficiency.
Molex 505110-8091 Reel Original Label
Nantian Electronics, as a professional distributor, keeps a robust stock of the 505110-8091, along with detailed datasheets and pin diagram instructions available for download. For those interested in purchasing, we invite you to contact us for a competitive quote and experience our reliable customer service.
